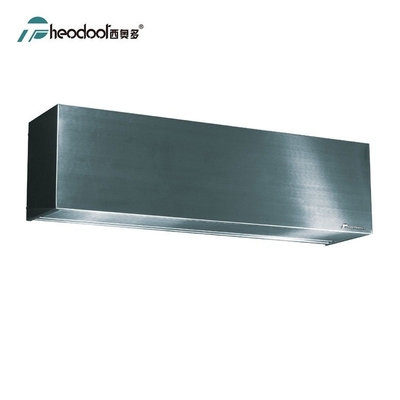

Stainless Steel Commercial Air Curtain With Centrifugal Turbine Fan 36 Inch - 72 Inch

50pcs
MOQ
negotiation
Price
Stainless Steel Commercial Air Curtain With Centrifugal Turbine Fan 36 Inch - 72 Inch
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Silver Ease Wind Series Air Curtain
Application: For Waiting Rooms, Food Factories, Hotel Kitchens And Bakeries Etc.
Length: 36inch, 48inch, 60inch, 72inch
Color: Silver (stainless Steel)
Air Type: Single Cooling, Has At Least 2 Motors
Air Speed: 16m/s
Supplied: 220V-50Hz/60Hz
Control: Remote Control Or Switch
Installation Height: 3.5m
Transport Packaging: Kraft Carton
High Light:

Stainless Steel Commercial Air Curtain

,

72 Inch Commercial Air Curtain

Basic Infomation
Place of Origin: China
Brand Name: Theodoor
Certification: ISO 9001, ISO14001, CCC, CE,
Model Number: FM-35**S-L
Payment & Shipping Terms
Packaging Details: Corrugated carton
Delivery Time: 25 working days after received the payment
Payment Terms: T/T or L/C at sight
Supply Ability: 10,000pcs per month
Product Description

Stainless Steel Commercial Air Curtain With Centrifugal Turbine fan, 36Inch-72Inch



Stainless Steel Commercial Air Curtain With Centrifugal Turbine Fan 36 Inch - 72 Inch 0



Specifications:



Model

Size

(mm)

Volt./ Freq.

Power

(W)

Air volume

(m3/h)

Air speed

(m/s)

Noise

N.W

(kg)

(dB)

FM-3509S-L

900x215x240

220V-50/60Hz

230

1100

16

52

14

FM-3512S-L

1200x215x240

290

1500

53

18.5

FM-3515S-L

1500x215x240

380

1900

55

25

FM-3518S-L

1800x215x240

450

2280

57

30





Feature:



Easy clean and fireproof

Stainless steel (304) covers, stronger and rust-proof, easy clean.



Luxury materials

Low noise centrifugal turbine fan, high velocity motor and apply quality bearing. Create powerful air pressure and durable operation.



Easy operation

Air inlet from top design, with special air deflector design and air direction is adjustable.Selectable high and lower air velocity controlled by remote control or key switch.





Company Information



PRECISION PRODUCTION

Founded in 2002, Theodoor is located in Guangzhou innovation and development new area—Sino-Singapore Knowledge City (SSGKC) with an area of 30,000 square meters. We have modern production workshop, applying the most advanced industrial equipments and detecting instruments to provide product manufacturing precision and stability of extremely reliable guarantee. Theodoor has full series products which meet different customized demand in different countries or areas.



INNOVATION TECHNOLOGY

With consecutive creation and innovation, Theodoor has built up national standard environmental simulation laboratory as well as air curtain long-time running laboratory. What’s more, Theodoor has accessed national invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry. Theodoor and the products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications etc.



Stainless Steel Commercial Air Curtain With Centrifugal Turbine Fan 36 Inch - 72 Inch 1

Stainless Steel Commercial Air Curtain With Centrifugal Turbine Fan 36 Inch - 72 Inch 2





FAQ



What's the main functions of Air Curtain?



1. Dust-proof, insect prevention

2. Isolate the smell

3. Energy saving

4. Comfortable heating



How to select suitable air curtain?



There are many factors that we have to consider when selecting an air curtain, some of which are listed below:

1. Application

2. Door height

3. Door width

4. Outside wind

5. Building static pressure

6. Door structure

7. Ambient temperature

8. Air curtain size

9. Air curtain design and look

10. Noise level

11. Power consumption



Why choose Theodoor Air Curtain?



Quality: High quality performance, more than 20 years manufacturing.

Design: Fashion and utility. More than 100 models air curtain, suitable for different environments.

Reliability: Lifetime testing lab in the factory. Enable long life time operation, continuous working 5000 hours without default.

Engineer: Professional R&D and engineer teams focus on Air curtains.

Machinery & technology: Advanced mould machines and equipments ensure products performance and reliability.

Materials and Quality: At every stage, from raw materials to the end products we insist on results: safety, efficiency, energy conservation and environmental protection, and our rigorous testing ensures that we reach standards higher than similar products. We want consumers to depend on the precision and reliability of our Air Curtain machinery.

Quality control: 100% product performance testing.

Cost saving: We provide long-life and high reliability air curtains with excellent quality and better performance, resulting in increased cost saving.



Contact us to have more professional answers. Welcome to visit our factory. www.theodoor.com.cn
