Remote Control Theodoor Air Curtain In Aluminum Cover For Door Ventilation Saving Indoor Air Conditioning With CE

China Remote Control Theodoor Air Curtain In Aluminum Cover For Door Ventilation Saving Indoor Air Conditioning With CE supplier
Remote Control Theodoor Air Curtain In Aluminum Cover For Door Ventilation Saving Indoor Air Conditioning With CE supplier Remote Control Theodoor Air Curtain In Aluminum Cover For Door Ventilation Saving Indoor Air Conditioning With CE supplier

Large Image :  Remote Control Theodoor Air Curtain In Aluminum Cover For Door Ventilation Saving Indoor Air Conditioning With CE

Product Details:

Place of Origin: China
Brand Name: Theodoor
Certification: ISO 9001, ISO14001, CE, ROHS, UL, SASO
Model Number: FM-35**-L/YS5

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: negotiable
Packaging Details: Corrugated carton
Delivery Time: 30 working days
Supply Ability: 15,000pcs per month
Contact Now
Detailed Product Description
Product Name: Fashion Wind Air Curtain Application: For Door, Entryway Keeping Indoor Air Conditioning
Length: 90cm, 100cm, 120cm, 150cm, 180cm, 200cm Color: Silver
Air Speed: 13-16m/s Or 16-20m/s Cover Material: Aluminum & ABS
Fan Type: Centrifugal Fan Control: Remote Control And Manual Switch
Auto Turn On/off: Optional Door Switch Control Foor Door Height: 3.5m/4m

Feature:

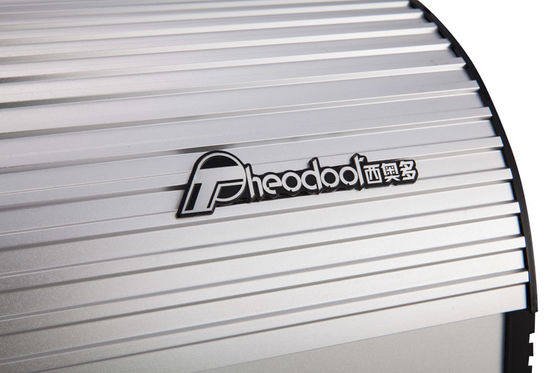

Fashion design with aluminum body, won’t be rusty and discoloration;
The body is without visible screw, elegant appearance;

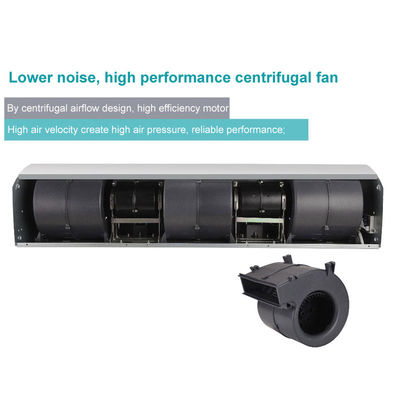

Adopting high-performance motor, safe and reliable; Centrifugal turbine creates higher air velocity;
Adopting updated remote control with high and low speeds operation;
Suitable for installation in luxury hotel, supermarket chains, large stadiums and airport terminals and other
entrances of high-grade places etc;
Installation height: 2.8-3.5m or 3.5-4m


Fashion air curtain with CE, ROHS and UL approved:


1) Remote control
2) Two speeds
3) Aluminum cover
4) Centrifugal type airflow
5) Adopting optimized electrical machinery, it operates reliably and runs safely.




Specifications:

Model

Voltage

V/ HZ

Input power

(W)

Air Volume

(m3/h)

Air Speed

(m/s)

Noise

(db)

Net W.

(Kg)

Size

(mm)

Hi Low Hi Low Hi Low Hi Lo

FM-3509-L/YS5

220~

240 /50



230 200 1100 900 16 13 <52 <49 13.5 900x220 x240
FM-3510-L/YS5 250 220 1200 1000 <52 <49 14 1000 x220 x240
FM-3512-L/YS5 290 260 1500 1200 <53 <50 16 1200 x220 x240
FM-3515-L/YS5 380 350 1900 1500 <55 <52 20.5 1500 x220 x240
FM-3518-L/YS5 450 420 2280 1800 <57 <55 24 1800 x220 x240
FM-3520-L/YS5 470 440 2520 2100 <58 <56 27.5 2000 x220 x240
FM-40 SERIES: (Available door height: 3-4m)
FM-4009-L/YS5

220~

240 /50

300 270 1400 1000 20 16 <57 <54 13 900x220 x240
FM-4010-L/YS5 320 290 1550 1100 <57 <54 13.5 1000 x220 x240
FM-4012-L/YS5 400 370 1900 1500 <58 <55 15.5 1200 x220 x240
FM-4015-L/YS5 500 470 2300 1900 <61 <58 20 1500 x220 x240
FM-4018-L/YS5 600 570 2850 2250 <63 <61 23.5 1800 x220 x240
FM-4020-L/YS5 620 590 3255 2855 <64 <62 27 2000 x220 x240



































































Remote Control Theodoor Air Curtain In Aluminum Cover For Door Ventilation Saving Indoor Air Conditioning With CE

Remote Control Theodoor Air Curtain In Aluminum Cover For Door Ventilation Saving Indoor Air Conditioning With CE



Applications:



Theodoor Air curtain is installed above the entryway of store, restaurant, hotel…etc. It can effectively
isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location
with airconditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air
Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable
 indoor climate is maintained.



Commercial use

Supermarket, shopping malls, department store, small store, hotels, restaurants, hospital,
schools; Movie theaters, fitness halls, clubs, bars, cafes, barbershop, waiting room,
subway, commercial building, museum entrance and more.

Industrial use

Factory, workshop, warehouse, spinning mill, frozen goods factory, paint factory, large
kitchen…etc.




Competitive Advantage:

Fashion & modern design
Machinery & technology: Advanced mould machines and equipments ensure products performance and
reliability.
Quality control: 100% product performance testing.





What is Air Curtain?



Theodoor Air curtain is installed above the entryway of store, restaurant, hotel...etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.

Remote Control Theodoor Air Curtain In Aluminum Cover For Door Ventilation Saving Indoor Air Conditioning With CE

Remote Control Theodoor Air Curtain In Aluminum Cover For Door Ventilation Saving Indoor Air Conditioning With CE


Company Information



PRECISION PRODUCTION

Founded in 2002, Theodoor is located in Guangzhou innovation and development new areaSino-Singapore Knowledge City (SSGKC) with an area of 30,000 square meters. We have modern production workshop, applying the most advanced industrial equipments and detecting instruments to provide product manufacturing precision and stability of extremely reliable guarantee. Theodoor has full series products which meet different customized demand in different countries or areas.



INNOVATION TECHNOLOGY

With consecutive creation and innovation, Theodoor has built up national standard environmental simulation laboratory as well as air curtain long-time running laboratory. What’s more, Theodoor has accessed national invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry. Theodoor and the products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications etc.



Remote Control Theodoor Air Curtain In Aluminum Cover For Door Ventilation Saving Indoor Air Conditioning With CE

Remote Control Theodoor Air Curtain In Aluminum Cover For Door Ventilation Saving Indoor Air Conditioning With CE

Remote Control Theodoor Air Curtain In Aluminum Cover For Door Ventilation Saving Indoor Air Conditioning With CE

FAQ


What's the main functions of Air Curtain?



1. Dust-proof, insect prevention

2. Isolate the smell

3. Energy saving

4. Comfortable heating



How to select suitable air curtain?



There are many factors that we have to consider when selecting an air curtain, some of which are listed below:

1. Application

2. Door height

3. Door width

4. Outside wind

5. Building static pressure

6. Door structure

7. Ambient temperature

8. Air curtain size

9. Air curtain design and look

10. Noise level

11. Power consumption



Why choose Theodoor Air Curtain?



Quality: High quality performance, more than 16 years manufacturing.

Design: Fashion and utility. More than 100 models air curtain, suitable for different environments.

Reliability: Lifetime testing lab in the factory. Enable long life time operation, continuous working 5000 hours without default.

Engineer: Professional R&D and engineer teams focus on Air curtains.

Machinery & technology: Advanced mould machines and equipments ensure products performance and reliability.

Materials and Quality: At every stage, from raw materials to the end products we insist on results: safety, efficiency, energy conservation and environmental protection, and our rigorous testing ensures that we reach standards higher than similar products. We want consumers to depend on the precision and reliability of our Air Curtain machinery.

Quality control: 100% product performance testing.

Cost saving: We provide long-life and high reliability air curtains with excellent quality and better performance, resulting in increased cost saving.



Contact us to have more professional answers. Welcome to visit our factory. www.theodoor.com.cn
