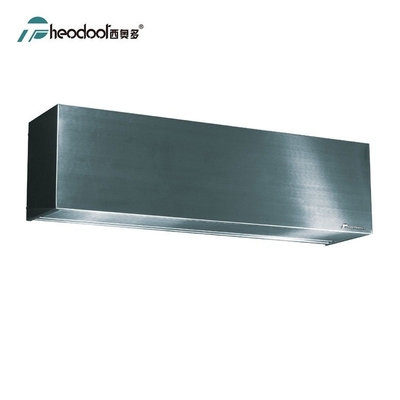

Stainless Steel Commercial Air Curtain With Centrifugal Turbine fan, 36Inch-72Inch
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Power (W) |
Air volume (m3/h) |
Air speed (m/s) |
Noise |
N.W (kg) |
|
(dB) |
|||||||
|
FM-3509S-L |
900x215x240 |
220V-50/60Hz |
230 |
1100 |
16 |
52 |
14 |
|
FM-3512S-L |
1200x215x240 |
290 |
1500 |
53 |
18.5 |
||
|
FM-3515S-L |
1500x215x240 |
380 |
1900 |
55 |
25 |
||
|
FM-3518S-L |
1800x215x240 |
450 |
2280 |
57 |
30 |
Feature:
Easy clean and fireproof
Stainless steel (304) covers, stronger and rust-proof, easy clean.
Luxury materials
Low noise centrifugal turbine fan, high velocity motor and apply quality bearing. Create powerful air pressure and durable operation.
Easy operation
Air inlet from top design, with special air deflector design and air direction is adjustable.Selectable high and lower air velocity controlled by remote control or key switch.
Company Information
PRECISION PRODUCTION
Founded in 2002, Theodoor is located in Guangzhou innovation and development new area—Sino-Singapore Knowledge City (SSGKC) with an area of 30,000 square meters. We have modern production workshop, applying the most advanced industrial equipments and detecting instruments to provide product manufacturing precision and stability of extremely reliable guarantee. Theodoor has full series products which meet different customized demand in different countries or areas.
INNOVATION TECHNOLOGY
With consecutive creation and innovation, Theodoor has built up national standard environmental simulation laboratory as well as air curtain long-time running laboratory. What’s more, Theodoor has accessed national invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry. Theodoor and the products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications etc.
FAQ
What's the main functions of Air Curtain?
1. Dust-proof, insect prevention
2. Isolate the smell
3. Energy saving
4. Comfortable heating
How to select suitable air curtain?
There are many factors that we have to consider when selecting an air curtain, some of which are listed below:
1. Application
2. Door height
3. Door width
4. Outside wind
5. Building static pressure
6. Door structure
7. Ambient temperature
8. Air curtain size
9. Air curtain design and look
10. Noise level
11. Power consumption
Why choose Theodoor Air Curtain?
Quality: High quality performance, more than 20 years manufacturing.
Design: Fashion and utility. More than 100 models air curtain, suitable for different environments.
Reliability: Lifetime testing lab in the factory. Enable long life time operation, continuous working 5000 hours without default.
Engineer: Professional R&D and engineer teams focus on Air curtains.
Machinery & technology: Advanced mould machines and equipments ensure products performance and reliability.
Materials and Quality: At every stage, from raw materials to the end products we insist on results: safety, efficiency, energy conservation and environmental protection, and our rigorous testing ensures that we reach standards higher than similar products. We want consumers to depend on the precision and reliability of our Air Curtain machinery.
Quality control: 100% product performance testing.
Cost saving: We provide long-life and high reliability air curtains with excellent quality and better performance, resulting in increased cost saving.
Contact us to have more professional answers. Welcome to visit our factory. www.theodoor.com.cn
