Aluminum Sand Blasting Commercial Door Air Curtain , Modern Decoration For Door Entrance And Exit

Aluminum Sand Blasting Commercial Door Air Curtain , Modern Decoration For Door Entrance And Exit
Aluminum Sand Blasting Commercial Door Air Curtain , Modern Decoration For Door Entrance And Exit Aluminum Sand Blasting Commercial Door Air Curtain , Modern Decoration For Door Entrance And Exit Aluminum Sand Blasting Commercial Door Air Curtain , Modern Decoration For Door Entrance And Exit Aluminum Sand Blasting Commercial Door Air Curtain , Modern Decoration For Door Entrance And Exit

Large Image :  Aluminum Sand Blasting Commercial Door Air Curtain , Modern Decoration For Door Entrance And Exit

Product Details:

Place of Origin: China
Brand Name: Theodoor
Certification: ISO 9001, ISO14001, CE, ROHS, UL, SASO
Model Number: FM-35**B-L/Y

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: Corrugated carton
Delivery Time: 25 working days
Payment Terms: T/T or L/C at sight
Supply Ability: 10,000pcs per month
Detailed Product Description
Product Name: Fashion Wind Sand Blasting Finished Air Curtain Application: For Door, Entryway
Supplied: 120v- 50/60Hz Or 220v-50/60Hz Type: Fan Cooling, Has At Least 2 Motors
Length: 36inch, 48inch, 60inch, 72inch Color: Silver
Air Speed: 13-16m/s, 16-20m/s Standard: CE,CCC
High Light:

garage door air curtain

,

recessed air curtain

Sand Blasting /Wire Drawing Aluminum Commercial Air Curtain, Modern Decoration For Door Entrance and Exit



Feature:

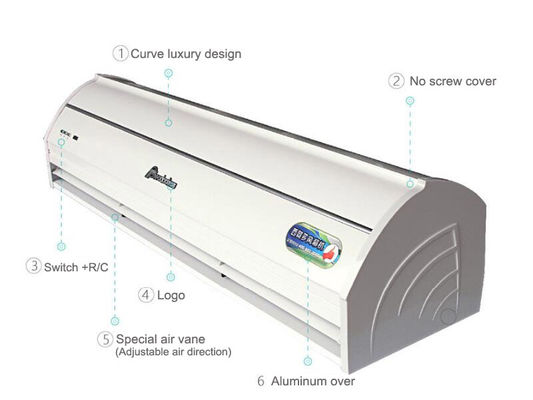

Fashion design with aluminum body, won’t be rusty and discoloration;

The body is without visible screw, elegant appearance;

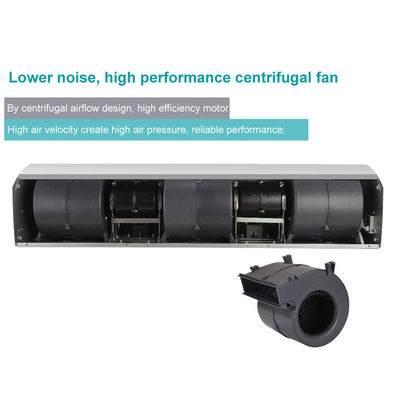

Adopting high-performance motor, safe and reliable; Centrifugal turbine creates higher air velocity;

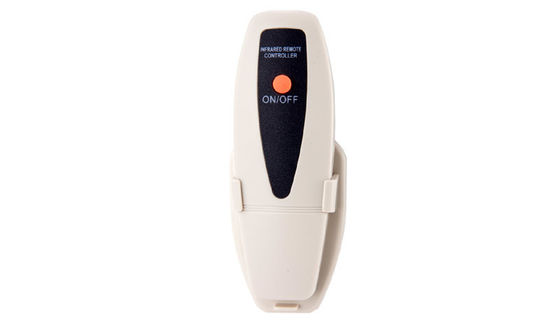

Adopting updated remote control with high and low speeds operation;

Suitable for installation in luxury hotel, supermarket chains, large stadiums and airport terminals and

otherentrances of high-grade places etc;



Specifications:

Model

Size

(mm)

Volt./ Freq.

Input power(W)

Air flow

(m3/h)

Air speed

(m/s)

Noise

(dB)

N.W (kg)

Hi

Lo

Hi

Lo

Hi

Lo

FM-3509B-L/Y

900x215x230

220v/50Hz

160

130

750

600

13-16

50

47

10

FM-3510B-L/Y

1000x215x230

230

200

1100

900

52

49

13

FM-3512B-L/Y

1200x215x230

250

220

1200

1000

52

49

13.5

FM-3515B-L/Y

1500x215x230

290

260

1500

1200

53

50

15.5

FM-3518B-L/Y

1800x215x230

380

350

1900

1500

55

52

20

FM-4009B-L/Y

900x215x230

220v/50Hz

470

440

2520

2100

16-20

58

56

27

FM-4010B-L/Y

1000x215x230

300

270

1400

1000

57

54

13

FM-4012B-L/Y

1200x215x230

320

290

1550

1100

57

54

13.5

FM-4015B-L/Y

1500x215x230

400

370

1900

1500

58

55

15.5

FM-4018B-L/Y

1800x215x230

500

470

2300

1900

61

58

20



Fashion air curtain:
1) Remote control
2) Two speeds
3) Aluminum cover
4) Centrifugal type airflow

5) Adopting optimized electrical machinery, it operates reliably and runs safely.



Aluminum Sand Blasting Commercial Door Air Curtain , Modern Decoration For Door Entrance And Exit 0Aluminum Sand Blasting Commercial Door Air Curtain , Modern Decoration For Door Entrance And Exit 1

Aluminum Sand Blasting Commercial Door Air Curtain , Modern Decoration For Door Entrance And Exit 2

Aluminum Sand Blasting Commercial Door Air Curtain , Modern Decoration For Door Entrance And Exit 3



What is Air Curtain?

Theodoor Air curtain is installed above the entryway of store, restaurant, hotel...etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.



What's the main functions of Air Curtain?

1. Dust-proof, insect prevention

2. Isolate the smell

3. Energy saving

4. Comfortable heating



How to select suitable air curtain?

There are many factors that we have to consider when selecting an air curtain, some of which are listed below:

1. Application

2. Door height

3. Door width

4. Outside wind

5. Building static pressure

6. Door structure

7. Ambient temperature

8. Air curtain size

9. Air curtain design and look

10. Noise level

11. Power consumption



Why choose Theodoor Air Curtain?

Quality: High quality performance, more than 18 years manufacturing.

Design: Fashion and utility. More than 100 models air curtain, suitable for different environments.

Reliability: Lifetime testing lab in the factory. Enable long life time operation, continuous working 5000 hours without default.

Engineer: Professional R&D and engineer teams focus on Air curtains.

Machinery & technology: Advanced mould machines and equipments ensure products performance and reliability.

Materials and Quality: At every stage, from raw materials to the end products we insist on results: safety, efficiency, energy conservation and environmental protection, and our rigorous testing ensures that we reach standards higher than similar products. We want consumers to depend on the precision and reliability of our Air Curtain machinery.

Quality control: 100% product performance testing.

Cost saving: We provide long-life and high reliability air curtains with excellent quality and better performance, resulting in increased cost saving.
