Golden Brown Residential S5 Series Cooling Air Curtain With R/C

China Golden Brown Residential S5 Series Cooling Air Curtain With R/C supplier
Golden Brown Residential S5 Series Cooling Air Curtain With R/C supplier Golden Brown Residential S5 Series Cooling Air Curtain With R/C supplier Golden Brown Residential S5 Series Cooling Air Curtain With R/C supplier

Large Image :  Golden Brown Residential S5 Series Cooling Air Curtain With R/C

Product Details:

Place of Origin: China
Brand Name: Theodoor
Certification: ISO 9001, ISO14001, CE, ROHS
Model Number: FM-35**G-L/Y S5

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: Corrugated carton
Delivery Time: 25 working days
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: S5 Golden Brown Air Curtain Application: For Door, Entryway
Length: 36inch, 48inch, 60inch, 90cm, 120cm, 150cm Color: Golden Brown
Air Speed: 13-16m/s, 16-20m/s Air Type: Single Cooling, Has At Least 2 Motors
Supplied: 120v- 50/60Hz Or 220v-50/60Hz Standard: CCC, CE,SASO

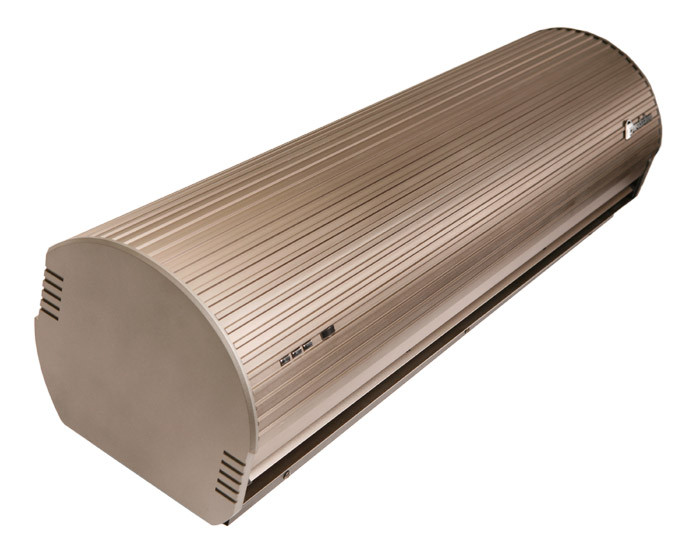

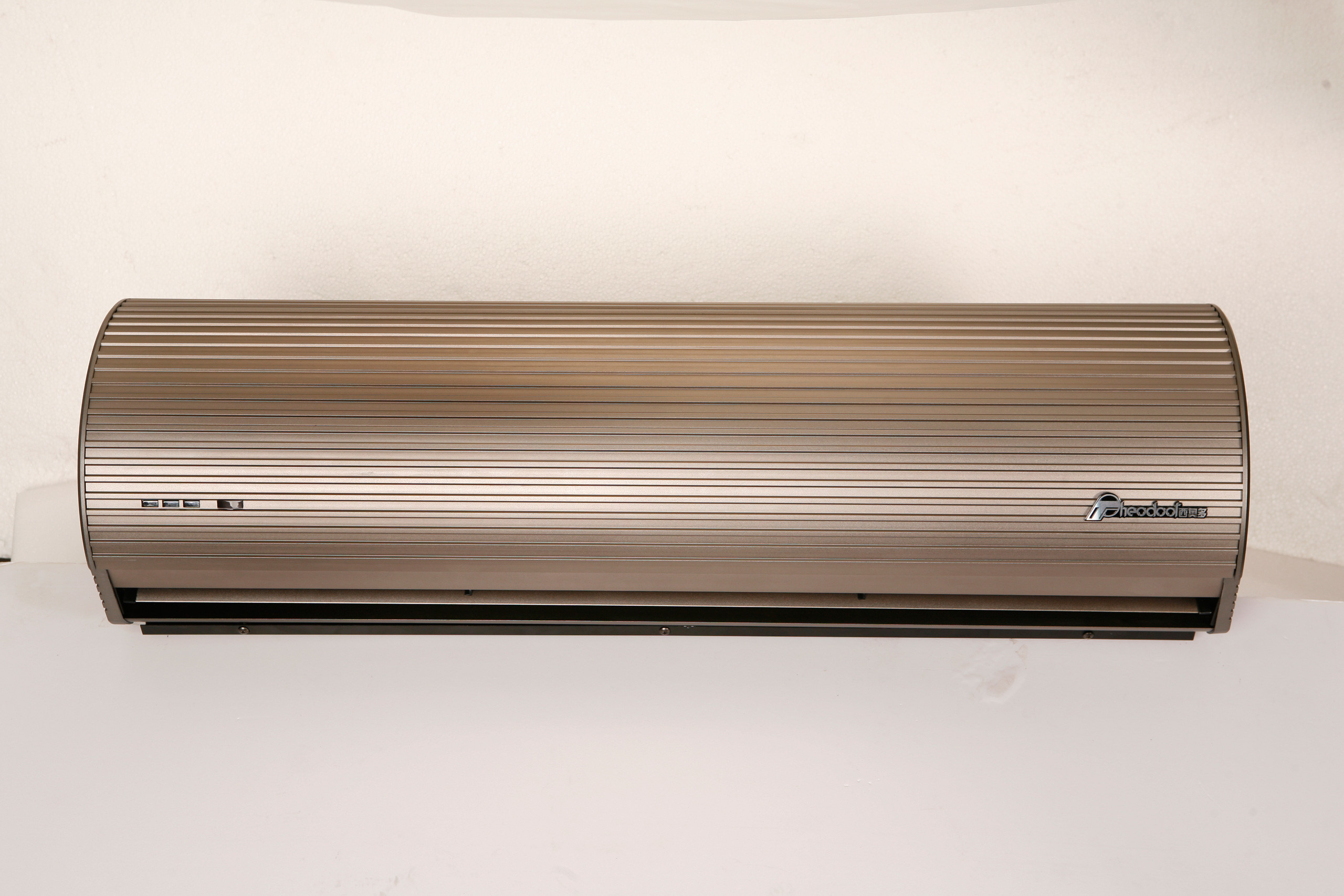

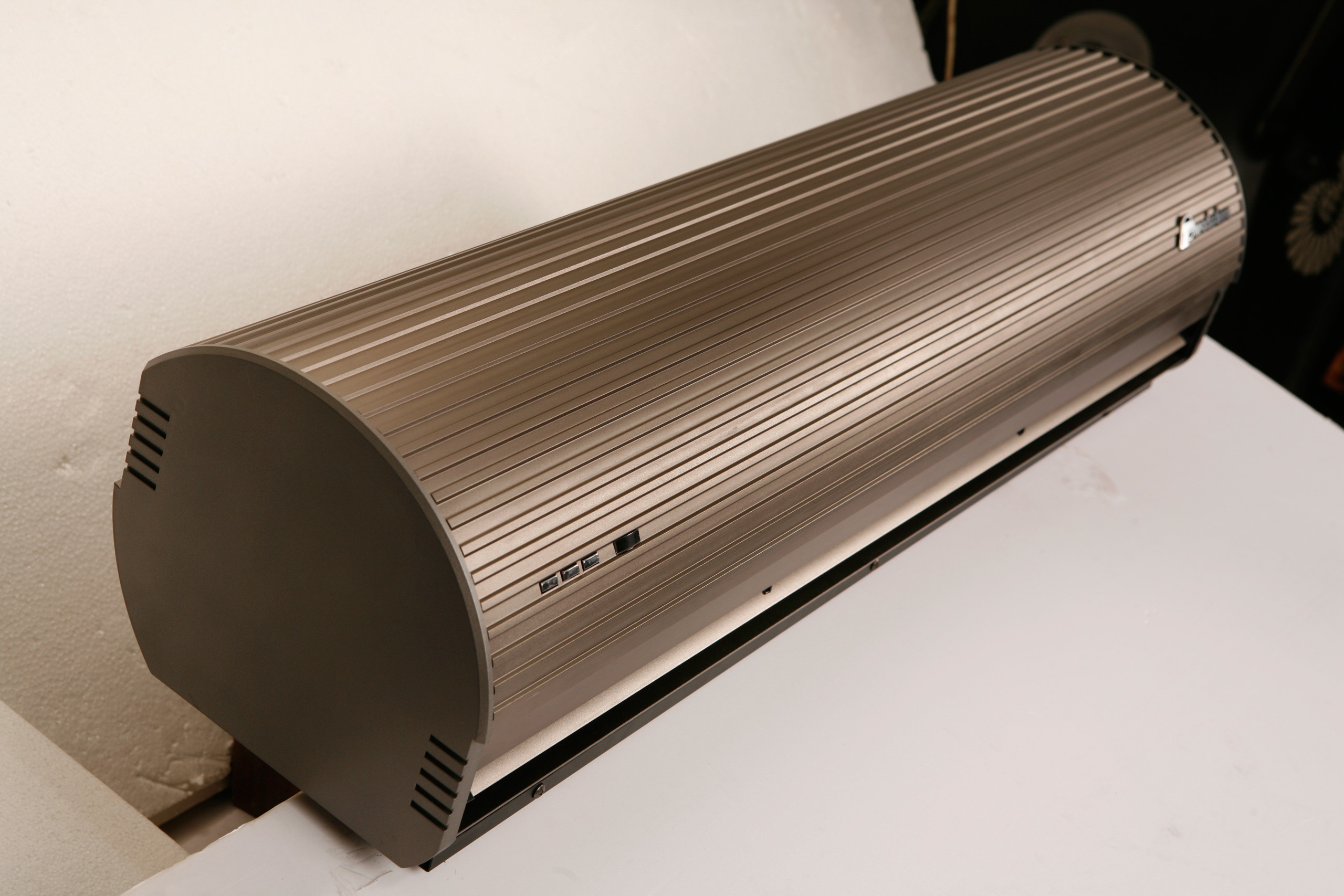

Golden Brown Residential Air Curtain With R/C



Specifications:



Model

Size

(mm)

Volt./ Freq.

Input power(W)

Air flow

(m3/h)

Air speed

(m/s)

Noise

(dB)

N.W (kg)

Hi

Lo

Hi

Lo

Hi

Lo

FM-3509G-L/Y S5

900x220x240

220v/50Hz

230

200

1100

600

13-16

52

49

13.5

FM-3510G-L/Y S5

1000x220x240

250

220

1200

900

52

49

14

FM-3512G-L/Y S5

1200x220x240

290

260

1500

1200

53

50

16

FM-3515G-L/Y S5

1500x220x240

380

350

1900

1500

55

53

20.5

FM-4009G-L/Y S5

900x220x240

220v/50Hz

300

270

1400

1000

16-20

57

54

13.5

FM-4010G-L/Y S5

1000x220x240

320

290

1550

1100

57

54

14

FM-4012G-L/Y S5

1200x220x240

400

370

1900

1500

58

55

16

FM-4015G-L/Y S5

1500x220x240

500

470

2300

1900

61

58

20.5





Feature:



New fashion specialty designing, unique curve arc-shape, full aluminum body, won’t be rusty and

discoloration;

The body is without visible screw, elegant appearance;

Adopting high-performance motor, safe and reliable; using designed centrifugal turbine with strong wind;

Adopting updated remote control with high and low speeds operation;

There are selectable four colors: white, silver, brown, red;

Suitable for installation in luxury hotel, supermarket chains, large stadiums and airport terminals and other

 entrances of high-grade places etc;

Installation height: 3-4m



At every stage, from raw materials to the end products we insist on results: safety, efficiency,

energy conservation and environmental protection, and our rigorous testing ensure that we

reach standards higher than similar products from international manufacturers.

We want consumers to depend on the precision and reliability of our Air Curtain machinery.





Applications: door entrance



Business Organizations

Supermarket, large scale shopping malls, chain shops, department store, star-rated hotels, restaurants;

Public Places

subway, airports, stations, bookstores, exhibition halls, stadiums, museums,

commercial buildings, hospital;

Entertainments

Movie theaters, clubs, bars, cafes, Internet bars, beauty shops.
