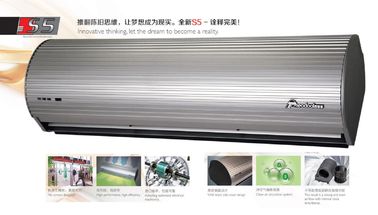

S5 Aluminum Silver Air Curtain
Specifications:
Model |
Size |
Volt./ Freq. |
Input power(W) |
Air flow |
Air speed |
Noise |
N.W (kg) |
|||
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
FM-3509B-L/Y S5 |
900x220x240 |
220v/50Hz |
230 |
200 |
1100 |
600 |
13-16 |
52 |
49 |
13.5 |
FM-3510B-L/Y S5 |
1000x220x240 |
250 |
220 |
1200 |
900 |
52 |
49 |
14 |
||
FM-3512B-L/Y S5 |
1200x220x240 |
290 |
260 |
1500 |
1200 |
53 |
50 |
16 |
||
FM-3515B-L/Y S5 |
1500x220x240 |
380 |
350 |
1900 |
1500 |
55 |
53 |
20.5 |
||
FM-3518B-L/Y S5 |
1800x220x240 |
450 |
420 |
2280 |
1800 |
57 |
54 |
24 |
||
FM-4009B-L/Y S5 |
900x220x240 |
220v/50Hz |
300 |
270 |
1400 |
1000 |
16-20 |
57 |
54 |
13.5 |
FM-4010B-L/Y S5 |
1000x220x240 |
320 |
290 |
1550 |
1100 |
57 |
54 |
14 |
||
FM-4012B-L/Y S5 |
1200x220x240 |
400 |
370 |
1900 |
1500 |
58 |
55 |
16 |
||
FM-4015B-L/Y S5 |
1500x220x240 |
500 |
470 |
2300 |
1900 |
61 |
58 |
20.5 |
||
FM-4018B-L/Y S5 |
1800x220x240 |
620 |
590 |
3255 |
2855 |
63 |
61 |
24 |
Feature:
New fashion specialty designing, unique curve arc-shape, Aluminum body, won’t be rusty and discoloration;
The body is without visible screw, elegant appearance;
Adopting high-performance motor, safe and reliable; using designed centrifugal turbine with strong wind;
Adopting updated remote control with high and low speeds operation;
There are selectable four colors: white, silver, brown, red;
Suitable for installation in luxury hotel, supermarket chains, large stadiums and airport terminals and other
entrances of high-grade places etc;
Installation height: 3-4m
Applications:
Theodoor Air curtain is installed above the entryway of store, restaurant, hotel…etc. It can effectively isolate
convection indoor and outdoor and keep temperature and humidity. Especially used in the location with
air-conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain
can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate
is maintained.
Commercial use |
Supermarket, shopping malls, department store, small store, hotels, restaurants, hospital, |
Industrial use |
Factory, workshop, warehouse, spinning mill, frozen goods factory, paint factory, large |
Competitive Advantage:
Fashion & modern design
Machinery & technology: Advanced mould machines and equipments ensure products performance and
reliability.
Quality control: 100% product performance testing.
PRECISION PRODUCTION
Founded in 2002, Theodoor is located in Guangzhou innovation and development new area—Sino-Singapore Knowledge City (SSGKC) with an area of 30,000 square meters. We have modern production workshop, applying the most advanced industrial equipments and detecting instruments to provide product manufacturing precision and stability of extremely reliable guarantee. Theodoor has full series products which meet different customized demand in different countries or areas.
INNOVATION TECHNOLOGY
With consecutive creation and innovation, Theodoor has built up national standard environmental simulation laboratory as well as air curtain long-time running laboratory. What’s more, Theodoor has accessed national invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry. Theodoor and the products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications etc.
What's the main functions of Air Curtain?
1. Dust-proof, insect prevention
2. Isolate the smell
3. Energy saving
4. Comfortable heating
How to select suitable air curtain?
There are many factors that we have to consider when selecting an air curtain, some of which are listed below:
1. Application
2. Door height
3. Door width
4. Outside wind
5. Building static pressure
6. Door structure
7. Ambient temperature
8. Air curtain size
9. Air curtain design and look
10. Noise level
11. Power consumption
