5G Series Aluminum Silver Commercial Air Curtains For Door Height At 3m
Feature
Aluminum cover with 3D body design;
Normal air, offer invisible air door.
Aluminum cover with 3D body design, covered with black side cover, luxury and classic appearance.
The new bar grille panel and luxury air intake design, be able to maintain a clean body.
Optimized fan wheel design, provide stable and even air curtain. With large air volume and low noise.
Reliable designed motor operates 5000 hours continuously without any defects.
1) Remote control
2) Two speeds
3) Aluminum cover
4) Available size: 900mm, 1,000mm 1,200mm, 1,500mm, 1,800mm
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Motor power(W) |
Air volume (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W (kg) |
|||
|
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
|
FM-1209T/Y5G |
900x190x220 |
220v~ 50Hz |
160 |
110 |
1400 |
1100 |
9-11 |
57 |
55 |
10 |
|
FM-1210T/Y5G |
1000x190x220 |
180 |
130 |
1600 |
1300 |
58 |
56 |
11 |
||
|
FM-1212T/Y5G |
1200x190x220 |
200 |
150 |
1900 |
1600 |
58 |
56 |
12.5 |
||
|
FM-1215T/Y5G |
1500x190x220 |
230 |
180 |
2500 |
2000 |
59 |
57 |
15.5 |
||
|
FM-1218T/Y5G |
1800x190x220 |
300 |
250 |
3200 |
2600 |
60 |
58 |
18 |
||

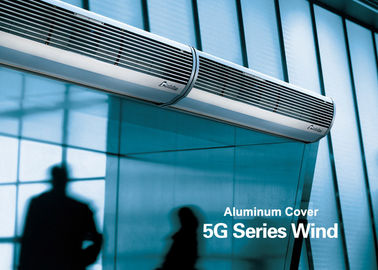

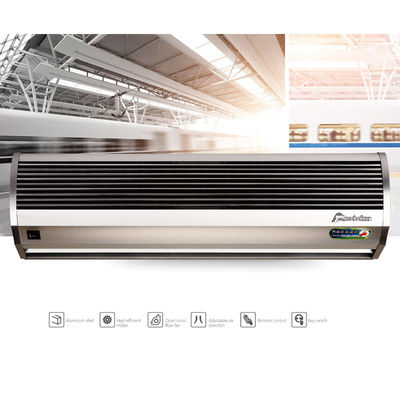

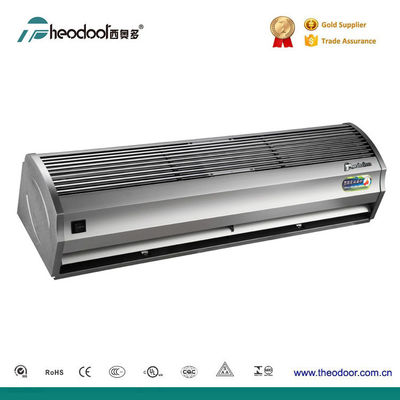

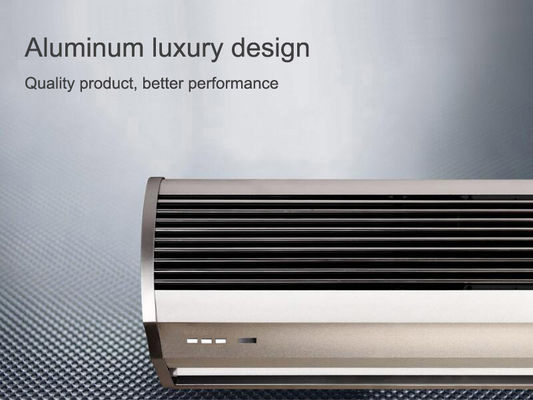

Product photos:
What is Air Curtain?
Air curtain is an air fresher equipment, to form an “invisible air door” by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic, medicine making, food processing, precision processing, chemical, business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Air curtain is also called air door, air barrier etc.
