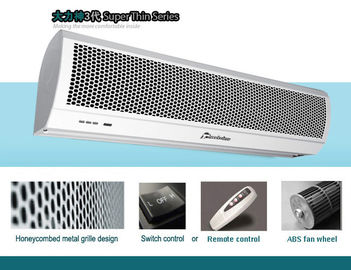

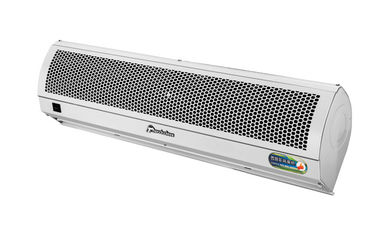

1m to 2m Compact Titan 3 Series Residential Air Curtain
Feature
1. The compact air curtain adopts metal cover is designed with advanced fire resistance.
In addition it has easy installation and simple maintenance.

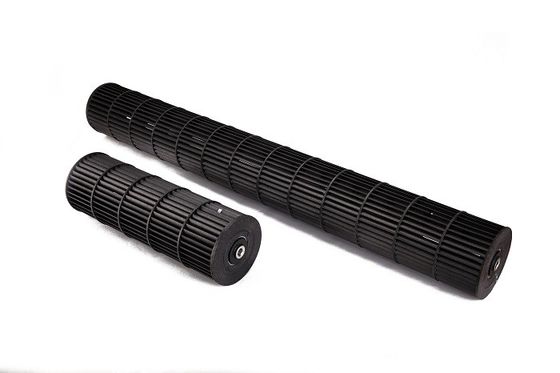

2. The optimized fan wheel provides stable & even air flow. It has large air volume and low noise performance.
3. The reliable designed motor, with overheating protector and has safety operation of 5000 hours continuously without defect.
4. Adopting remote control or touch switch, it’s able to adjust high and low air velocity.
5. Suitable for application in cafeteria, bakery, waiting room, restaurants, retail shop, department store, sports center and so on.
Specifications:
| Model |
Voltage V/ HZ |
Input power (W) |
Air Volume (m3/h) |
Air Speed (m/s) |
Noise (db) |
Net Weight (Kg) |
Size (mm) |
||
| Hi | Low | Hi | Low | ||||||
| 12 series: available door height: 2.2-3m | 1400 | 1100 | 11 | 9 | <57 | 10 | 900x190x210 | ||
| FM-1209SA3 |
220~ 240 /50 |
<160 | |||||||
| FM-1210SA3 | <180 | 1270 | 1000 | <57 | 10.5 | 1000x190x210 | |||
| FM-1212SA3 | <200 | 1750 | 1200 | <58 | 12 | 1200x190x210 | |||
| FM-1215SA3 | <230 | 2180 | 1500 | <59 | 13.5 | 1500x190x210 | |||
| FM-1218SA3 | <330 | 2610 | 1800 | <60 | 15 | 1800x190x210 | |||
| FM-1220SA3 | <350 | 2800 | 1850 | <61 | 17 | 2000x190x210 | |||
Pictures:
What's the main functions of Air Curtain?
1. Dust-proof, insect prevention
2. Isolate the smell
3. Energy saving
4. Comfortable heating
How to select suitable air curtain?
There are many factors that we have to consider when selecting an air curtain, some of which are listed below:
1. Application
2. Door height
3. Door width
4. Outside wind
5. Building static pressure
6. Door structure
7. Ambient temperature
8. Air curtain size
9. Air curtain design and look
10. Noise level
Why choose Theodoor Air Curtain?
Quality: High quality performance, more than 18 years manufacturing.
Design: Fashion and utility. More than 100 models air curtain, suitable for different environments.
Reliability: Lifetime testing lab in the factory. Enable long life time operation, continuous working 5000 hours without default.
Engineer: Professional R&D and engineer teams focus on Air curtains.
Machinery & technology: Advanced mould machines and equipments ensure products performance and reliability.
Materials and Quality: At every stage, from raw materials to the end products we insist on results: safety, efficiency, energy conservation and environmental protection, and our rigorous testing ensures that we reach standards higher than similar products. We want consumers to depend on the precision and reliability of our Air Curtain machinery.
Quality control: 100% product performance testing.
Cost saving: We provide long-life and high reliability air curtains with excellent quality and better performance, resulting in increased cost saving.
