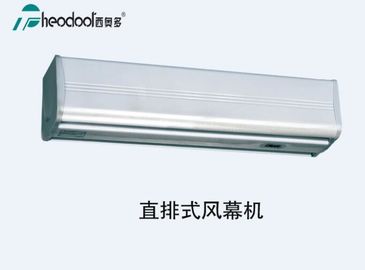

Direct Ventilating Air Curtain Overdoor Air Barrier to Saving Indoor Air Conditioning
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Motor power(W) |
Air volume (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W(kg) |
|||
|
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
|
FM-1306T-Z/Y |
600x213x160 |
220v~ 50Hz |
80 |
70 |
840 |
630 |
8.5-11 |
49 |
48 |
7.8 |
|
FM-1309T-Z/Y |
900x213x160 |
130 |
120 |
1400 |
1050 |
52 |
51 |
11.2 |
||
|
FM-1312T-Z/Y |
1200x213x160 |
160 |
145 |
1680 |
1760 |
54 |
53 |
14.5 |
||
|
FM-1315T-Z/Y |
1500x213x160 |
215 |
195 |
2240 |
1680 |
58 |
56 |
18 |
||
Feature
Direct ventilation air curtain design, the stainless cover is made of hightech aluminum, provide an invisible air door.
Luxury appearance
By direct ventilating airflow design, create dual airflow and effective air barrier.
Stable performance
Optimized air conditioner motor, low noise operation.
Easy operation
Selectable high and lower air velocity controlled by remote control or key switch.

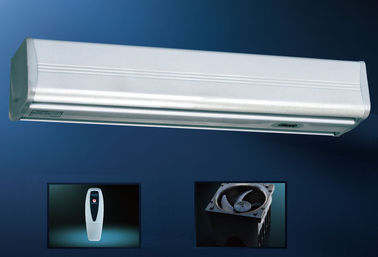

1) Wireless remote control
2) Direct ventilation design
3) Dual airflow for effective air barrier
4) Applications: 2.5m doors
5) Available size: 600mm, 900mm, 1,200mm, 1,500mm
