Residential Centrifugal Overhead Door Air Curtain For Restaurant 13-16m/s 16-20m/s

50PCS
MOQ
Negotiable
Price
Residential Centrifugal Overhead Door Air Curtain For Restaurant 13-16m/s 16-20m/s
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fashion Wind Air Curtain
Application: For Door, Entryway
Length: 90cm, 120cm, 150cm, 180cm, 200cm
Color: White, Silver
Air Speed: 13-16m/s, 16-20m/s
Air Type: Fan Cooling, Has At Least 2 Motors
Supplied: 120v- 50/60Hz Or 220v-50/60Hz
Standard: CE, UL, SASO
High Light:

air curtains for restaurants

,

6kw air curtain

Basic Infomation
Place of Origin: China
Brand Name: Theodoor
Certification: ISO 9001, ISO14001, CE, ROHS
Model Number: FM-40**-L/Y
Payment & Shipping Terms
Packaging Details: Carton with foam protection
Delivery Time: 25 working days
Supply Ability: 10,000pcs per month
Product Description

Fashion Model Residential Air Curtain By Centrifugal Air Flow For Door Over 4m

(Fashion Wind Air Curtain​)


Specifications:

Model

Size
(mm)

Volt./ Freq.

Input power(W)

Air flow
(m3/h)

Air speed
(m/s)

Noise
(dB)

N.W (kg)

Hi

Lo

Hi

Lo

Hi

Lo

FM-3509-L/Y

900x215x230

220v/50Hz

160

130

750

600

13-16

50

47

10

FM-3510-L/Y

1000x215x230

230

200

1100

900

52

49

13

FM-3512-L/Y

1200x215x230

250

220

1200

1000

52

49

13.5

FM-3515-L/Y

1500x215x230

290

260

1500

1200

53

50

15.5

FM-3518-L/Y

1800x215x230

380

350

1900

1500

55

52

20

FM-3520-L/Y

2000x215x230

450

420

2280

1800

57

55

23.5

FM-4009-L/Y

900x215x230

220v/50Hz

470

440

2520

2100

16-20

58

56

27

FM-4010-L/Y

1000x215x230

300

270

1400

1000

57

54

13

FM-4012-L/Y

1200x215x230

320

290

1550

1100

57

54

13.5

FM-4015-L/Y

1500x215x230

400

370

1900

1500

58

55

15.5

FM-4018-L/Y

1800x215x230

500

470

2300

1900

61

58

20

FM-4020-L/Y

2000x215x230

600

570

2850

2250

63

61

23.5




Feature:
Fashion design with aluminum body, won’t be rusty and discoloration;
The body is without visible screw, elegant appearance;

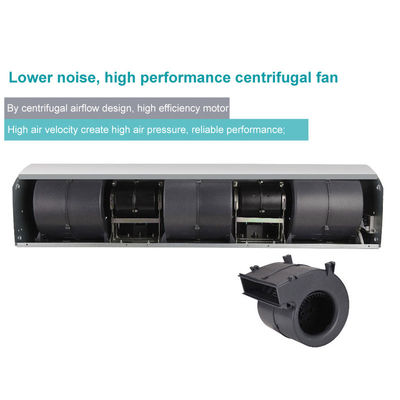

Adopting high-performance motor, safe and reliable; Centrifugal turbine creates higher air velocity;
Adopting updated remote control with high and low speeds operation;
Suitable for installation in luxury hotel, supermarket chains, large stadiums and airport terminals and other
entrances of high-grade places etc;




Applications:

Theodoor Air curtain is installed above the entryway of store, restaurant, hotel…etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air-conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.



Commercial use

Supermarket, shopping malls, department store, small store, hotels, restaurants, hospital,
schools; Movie theaters, fitness halls, clubs, bars, cafes, barbershop, waiting room,
subway, commercial building, museum entrance and more.

Industrial use

Factory, workshop, warehouse, spinning mill, frozen goods factory, paint factory, large
kitchen…etc.


Competitive Advantage:
Fashion & modern design
Machinery & technology: Advanced mould machines and equipments ensure products performance and
reliability.
Quality control: 100% product performance testing.
Residential Centrifugal Overhead Door Air Curtain For Restaurant 13-16m/s 16-20m/s 0

Residential Centrifugal Overhead Door Air Curtain For Restaurant 13-16m/s 16-20m/s 1

Residential Centrifugal Overhead Door Air Curtain For Restaurant 13-16m/s 16-20m/s 2

Residential Centrifugal Overhead Door Air Curtain For Restaurant 13-16m/s 16-20m/s 3

Residential Centrifugal Overhead Door Air Curtain For Restaurant 13-16m/s 16-20m/s 4

Residential Centrifugal Overhead Door Air Curtain For Restaurant 13-16m/s 16-20m/s 5

What is Air Curtain?

Theodoor Air curtain is installed above the entryway of store, restaurant, hotel...etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.



Residential Centrifugal Overhead Door Air Curtain For Restaurant 13-16m/s 16-20m/s 6
