Water Warm Evaporator Heating Air Curtain Hot Water Source Overhead Air Barrier

50pcs
MOQ
Negotiation
Price
Water Warm Evaporator Heating Air Curtain Hot Water Source Overhead Air Barrier
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Water Warm Heating Air Curtain
Application: For Door, Entryway
Supplied: 220V-50Hz
Type: Water Source Cool & Heating Air
Length: 90cm, 120cm, 150cm
Color: White
Air Speed: 9-11m/s
High Light:

door heaters air curtain

,

electric air curtain heaters

Basic Infomation
Place of Origin: China
Brand Name: Theodoor
Certification: ISO 9001, ISO14001, CCC, CE
Model Number: RM-35**S
Payment & Shipping Terms
Packaging Details: Carton with foam protection
Delivery Time: 25 working days after received the payment
Payment Terms: T/T or L/C at sight
Supply Ability: 10,000pcs per month
Product Description

Water Warm Heated Air Curtain Heating Source From Hot Water​

Specifications:



Model

Size

(mm)

Volt./

 Freq.

Motor

 Power

(W)

Circulation water temp.100-65℃

Air

volume

(m3/h)

Air

speed

(m/s)

N.W

 (kg)

Hi

low

water flow

 (m/s)

water vol.

 (kg/h)

Water

resistance

 (Pa)

Air outlet

 temp.

Heat

dispersal

 capacity

(kW)

RM-3509-S

900x280x280

220v~

50Hz

160

110

0.49

878

2036

53

20

1400

9-11

19

RM-3512-S

1200x280x280

200

150

0.65

1170

2715

53

28

1900

24

RM-3515-S

1500x280x280

230

180

0.82

1460

3390

53

36

2500

29

RM-4009-S

900x375x280

220v~

50Hz

230

180

0.49

878

2036

53

20

2800

11-14

26

RM-4012-S

1200x375x280

350

300

0.65

1170

2715

53

28

3750

31

RM-4015-S

1500x375x280

430

380

0.82

1460

3390

53

36

4700

36


Feature
Water source air curtain: Made of galvanized steel cover; Safety water heating coil; high heat dispersion.

High Efficiency

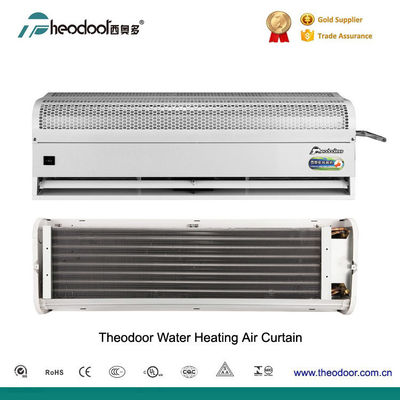

Multi-layer compound fan coil, suitable to connect hot or cold water with low consumption and high heat dissipation.
Optimized motor with safe and reliable performance; Running for 5000 hours continuously without failure;
Humanized Design

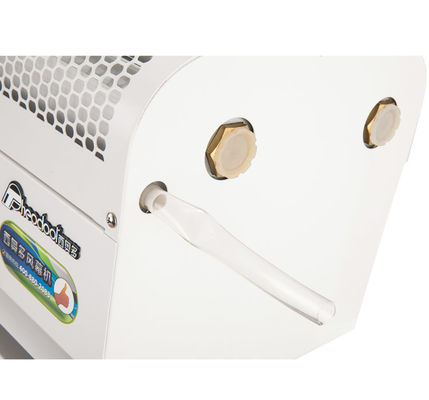

Preset left and right side 2 ways water inlets, thus, can meet different mounting occasions;
Exclusive stainless aluminum alloy condensate water collection plate much more suitable for commutative use in summer and winter.

Applications:
Theodoor Air curtain is installed above the entryway of store, restaurant, hotel…etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air-conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.
