4G Series Air Curtain 900-2000mm 220-240V Low Noise Compact

100
MOQ
$99
Price
4G Series Air Curtain 900-2000mm 220-240V Low Noise Compact
Features Gallery Product Description Request A Quote
Features
Specifications
Mounting Type: Wall / Window Mount
Weight: 15 Kg
Fan Motors Type: AC
Fan Type: Cross Flow Air Door Curtain
Power Supply: 220-240V/1Ph/50Hz
Fan Speed: 2-speed
Control: Remote Control & Switch
Voltage/Frequency: 220-240v/50hz
Size: 900x195x230 To 2000x195x230 Mm
Length: 900 To 2000 Mm
Air Speed: 11 M/s
Air Volume: 1400 To 3600 M3/h
Noise Level: 55 To 59 DB
Power: 160 To 350 W
Net Weight: 10.5 To 22.5 Kg
Highlight:

4G Series compact air curtain

,

low noise air curtain 900-2000mm

,

220-240V compact air curtain
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor
Certification: ISO 9001, ISO14001, CCC, CE
Payment & Shipping Terms
Product Description
Low Noise Compact Air Barrier Door Curtain for Door Entrance 900-2000mm
Product Attributes
Attribute Value
Type Air Curtain
Mounting Type Wall / Window Mount
Warranty 1 Year
Key Selling Points Easy to Operate
Machinery Test Report Provided
Video Outgoing-Inspection Provided
Core Components Motor
Weight (kg) 15
Compressor Brand N/A
Fan Motors Type AC
Product Name 4G Series Air Curtain
Fan Type Cross flow air door curtain
Power Supply 220-240V/1Ph/50Hz
Fan Speed 2-speed
Application For Door
Color White
Control Remote control & switch
Product Features
  • Elegant & Delicate Appearance: Full stainless steel shell with super thin body that won't rust
  • Stable Performance: High efficiency motor with overheating protector, capable of 5000 hours continuous safe operation

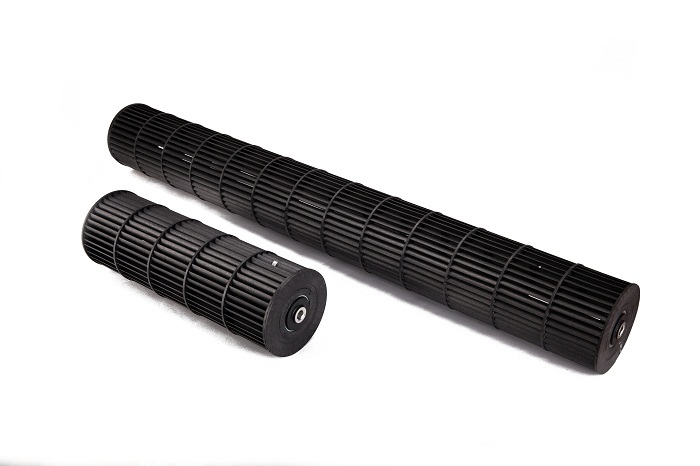

  • Low Noise Operation: Optimized fan wheel provides stable, even airflow with large volume and minimal noise

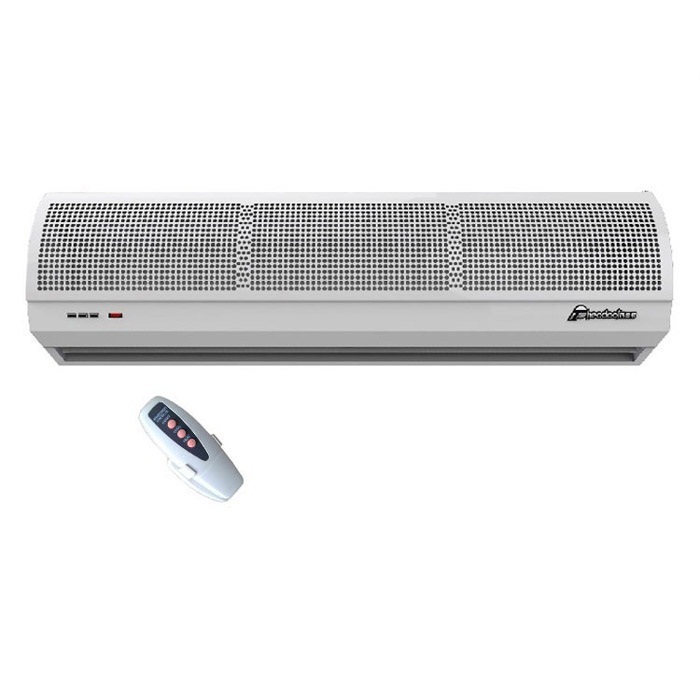

  • Easy Operation: Remote control or key switch allows adjustment of high and low air velocity
  • Versatile Application: Ideal for hotels, supermarkets, cafeterias, bakeries, waiting rooms, restaurants, retail shops, department stores, and sports centers
Technical Specifications
Item Voltage/Frequency (V/Hz) Size (mm) Length (mm) Air Speed (m/s) Air Volume (m³/h) Noise (dB) Power (W) Net Weight
FM-1209S2 220-240V/50Hz 900×195×230 900 11 1400 55 160 10.5
FM-1210S2 220-240V/50Hz 1000×195×230 1000 11 1600 56 180 11
FM-1212S2 220-240V/50Hz 1200×195×230 1200 11 1900 56 190 13.5
FM-1215S2 220-240V/50Hz 1500×195×230 1500 11 2500 57 230 16.5
FM-1218S2 220-240V/50Hz 1800×195×230 1800 11 3200 58 300 19.5
FM-1220S2 220-240V/50Hz 2000×195×230 2000 11 3600 59 350 22.5
4G Series Air Curtain 900-2000mm 220-240V Low Noise Compact 0
4G Series Air Curtain 900-2000mm 220-240V Low Noise Compact 1
4G Series Air Curtain 900-2000mm 220-240V Low Noise Compact 2
Functions of Air Curtain
Theodoor Air Curtain is installed above entryways of stores, restaurants, hotels, and other commercial spaces. It effectively isolates indoor and outdoor air convection, maintaining temperature and humidity levels. Particularly beneficial in air-conditioned spaces, it helps preserve indoor environments while reducing energy consumption of refrigeration equipment. Additionally, the air curtain prevents intrusion of dust, pests, and harmful fumes from outside, ensuring a comfortable and clean indoor climate.
4G Series Air Curtain 900-2000mm 220-240V Low Noise Compact 3
4G Series Air Curtain 900-2000mm 220-240V Low Noise Compact 4
4G Series Air Curtain 900-2000mm 220-240V Low Noise Compact 5
4G Series Air Curtain 900-2000mm 220-240V Low Noise Compact 6
4G Series Air Curtain 900-2000mm 220-240V Low Noise Compact 7
