Home /Products/Compact Air Curtain/230V Commercial Door Air Curtain 2000m³/h Airflow Stainless Steel

230V Commercial Door Air Curtain 2000m³/h Airflow Stainless Steel

10
MOQ
$99
Price
230V Commercial Door Air Curtain 2000m³/h Airflow Stainless Steel
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Voltage: 230 VAC
Mounting Type: Wall / Window Mount
Airflow: 2000m³/h
Weight: 10 KG
Fan Type: Cross Flow Type
Control Type: Manual Or Remote Control
Length Range: 36-72inch /0.9m-2m
Material: Stainless Steel Cover
Fan Speed: 2-speed
Motor Type: AC Type
Power Supply: 220-240V/1Ph/50Hz
Input Power: 160-350W
Air Volume: 1400-3600m³/h
Air Speed: 10-12m/s
Noise Level: ≤57-61db
Highlight:

230V commercial air curtain

,

stainless steel air curtain

,

2000m³/h airflow door curtain
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor
Payment & Shipping Terms
Product Description
AC Unit Commercial Partner Door Air Curtains A5 Series
Energy-Efficient Indoor Environment Protection
The A5 Series Door Air Curtain provides an effective barrier between indoor and outdoor environments, maintaining temperature control while saving energy and keeping interiors clean.
Product Specifications
Attribute Value
Type Air Curtain
Operating Voltage 230 VAC
Mounting Type Wall / Window Mount
Warranty 1 Year
Airflow 2000m³/h
Core Components Motor
Weight 10 KG
Fan Type Cross Flow Type Air Curtain
Control Manual or Remote Control
Length Options 36-72inch /0.9m-2m
Material Stainless Steel Cover
Fan Speed 2-speed

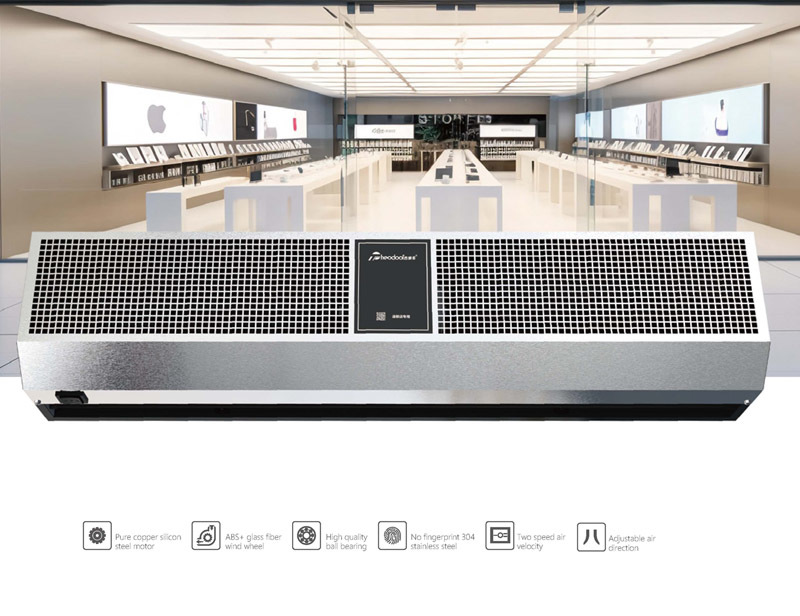

Key Features

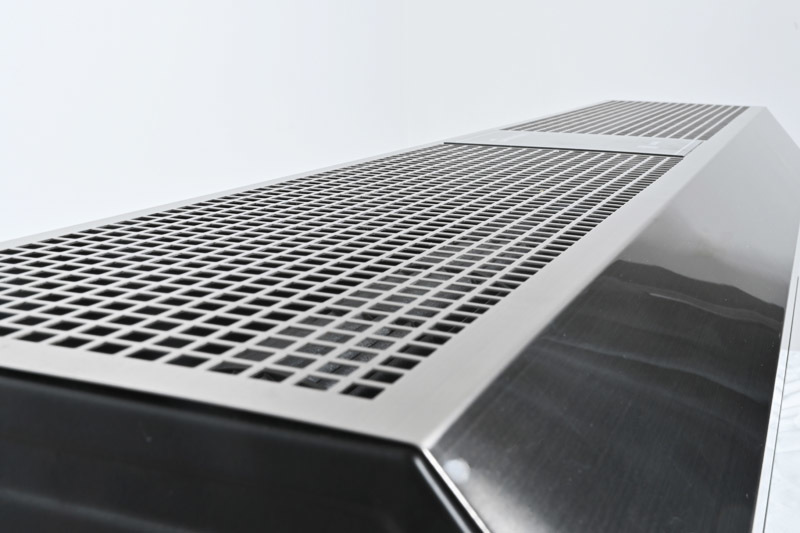

  • #304 Stainless Steel Design: Fingerprint-free, durable construction that resists deformation and rust
  • High Performance Motor: Pure copper silicon steel motor tested for 8000+ hours of continuous operation
  • Dynamic Balanced Fan: Low noise operation with stable performance
  • Flexible Control: Two-speed operation via remote control or key switch
  • Energy Saving: Reduces air conditioning costs by maintaining indoor climate
230V Commercial Door Air Curtain 2000m³/h Airflow Stainless Steel 0
Technical Specifications
Model Size (mm) Input Power (W) Air Volume (m3/h) Noise (db) Net Weight (Kg)
FM-3509A (SS) 900x175x195 160 1400 ≤57 8
FM-3510A (SS) 1000x175x195 180 1600 ≤58 9
FM-3512A (SS) 1200x175x195 200 1900 ≤58 10
FM-3515A (SS) 1500x175x195 230 2500 ≤59 11.5
FM-3518A (SS) 1800x175x195 300 3200 ≤60 13.5
FM-3520A (SS) 2000x175x195 350 3600 ≤61 15
230V Commercial Door Air Curtain 2000m³/h Airflow Stainless Steel 1 230V Commercial Door Air Curtain 2000m³/h Airflow Stainless Steel 2

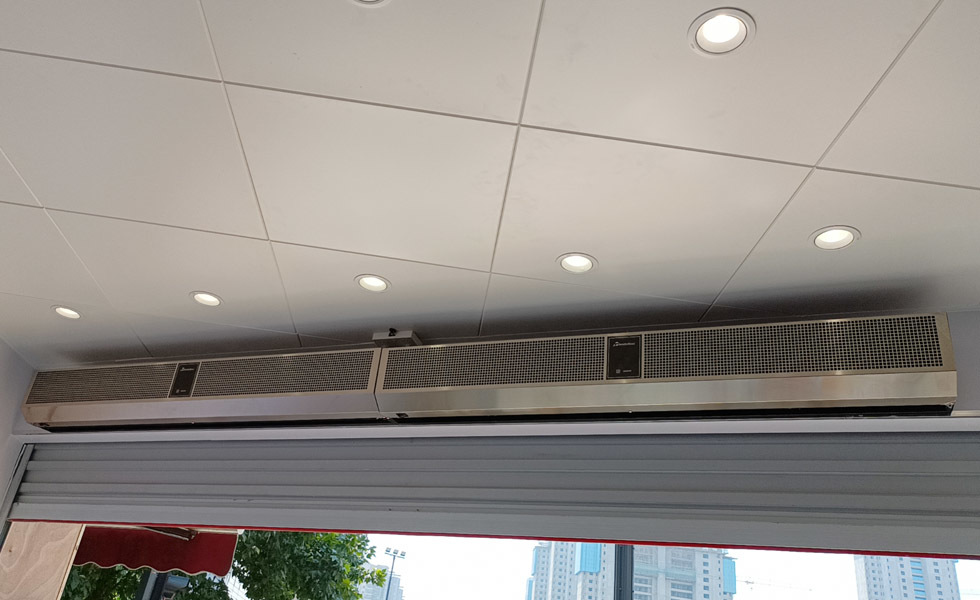

Applications
The A5 Series Air Curtain effectively isolates indoor and outdoor environments, maintaining temperature and humidity while preventing dust, pests, and fumes from entering.
Commercial Use Supermarkets, shopping malls, department stores, small shops, hotels, restaurants, hospitals, schools, movie theaters, fitness centers, clubs, bars, cafes, barbershops, waiting rooms, subway stations, commercial buildings, museum entrances
Industrial Use Factories, workshops, warehouses, spinning mills, frozen goods facilities, paint factories, large kitchens
Competitive Advantages
  • Modern, stylish design suitable for various environments
  • Advanced manufacturing technology ensuring product reliability
  • 100% product performance testing for quality assurance
  • Energy-efficient operation reducing operational costs
230V Commercial Door Air Curtain 2000m³/h Airflow Stainless Steel 3
Packaging & Shipping
230V Commercial Door Air Curtain 2000m³/h Airflow Stainless Steel 4
Our Services
  • OEM and ODM support
  • Custom label and box design
  • Shipping arrangement
  • After-sales spare parts support
Frequently Asked Questions
What are the main functions of Air Curtain?
  1. Dust-proof and insect prevention
  2. Odor isolation
  3. Energy saving
  4. Comfortable heating
How to select suitable air curtain?
Consider these factors when selecting an air curtain:
  • Application requirements
  • Door height and width
  • Outside wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Air curtain size and design
  • Noise level requirements
  • Power consumption
