5G Series EC Motor Air Curtain 230V 2000m³/h for Doors

500
MOQ
5G Series EC Motor Air Curtain 230V 2000m³/h for Doors
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Voltage: 230 VAC
Airflow: 2000m³/h
Fan Type: Cross Flow Fan
Air Speed: 9-11m/s
Motor Type: DC,EC Motor
Fan Speed: 7-speed
Control Type: Remote Control And Switch
Size Options: 0.9m, 1m, 1.2m, 1.5m, 1.8m, 2m
Installation Height: 2.3-3m
Input Power: 80w, 90w, 100w, 160w, 200w, 220w
Material: Aluminum Alloy And ABS
Mounting Type: Wall / Window Mount
Dimensions: 900x190x225mm, 1000x190x225mm, 1200x190x225mm, 1500x190x225mm, 1800x190x225mm, 2000x190x225mm
Design Concept: Compact And Efficiency
Air Guide Plate: Adjustable Air Direction
Highlight:

5G EC motor air curtain

,

230V compact air curtain

,

2000m³/h door air curtain

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor
Certification: ce
Payment & Shipping Terms
Product Description
Theodoor 5G Air Curtain Motor EC Type for Door AC Ventilation at High ERP Efficiency
Product Overview

Theodoor air curtains are installed above entryways of stores, restaurants, hotels, and other commercial spaces. They effectively isolate indoor and outdoor environments, maintaining temperature and humidity while preventing dust, pests, and harmful fumes from entering. These units work particularly well with air conditioning systems to enhance energy efficiency.

Key Features
  • Energy-saving DC/EC motor with high efficiency and low power consumption
  • 7-speed adjustable air velocity with remote control operation
  • Cross flow fan design for high air volume and low noise operation
  • Aluminum alloy construction with ABS components for durability
  • Special air guide plate design for adjustable air direction
  • Suitable for door heights between 2.3-3 meters
Technical Specifications
Attribute Value
Type Air Curtain
Operating Voltage 230 VAC
Mounting Type Wall / Window Mount
Airflow 2000m³/h
Motor Type DC, EC Motor
Control Remote control and switch
Available Sizes 0.9m, 1m, 1.2m, 1.5m, 1.8m, 2m
Warranty 1 Year
Performance Parameters
Model Size Air Speed Input Power
FM-1209T/YDC 900x190x225mm 9-11m/s 80w
FM-1210T/YDC 1000x190x225mm 9-11m/s 90w
FM-1212T/YDC 1200x190x225mm 9-11m/s 100w
FM-1215T/YDC 1500x190x225mm 9-11m/s 160w
FM-1218T/YDC 1800x190x225mm 9-11m/s 200w
FM-1220T/YDC 2000x190x225mm 9-11m/s 220w
Product Images

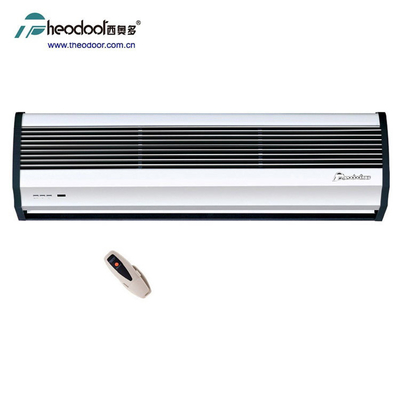

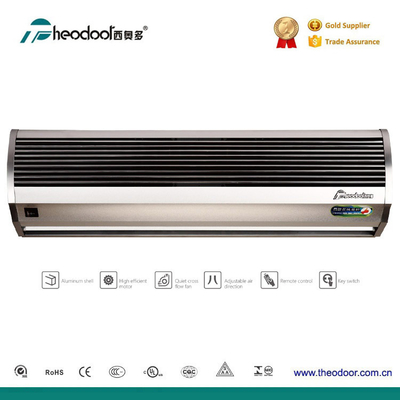

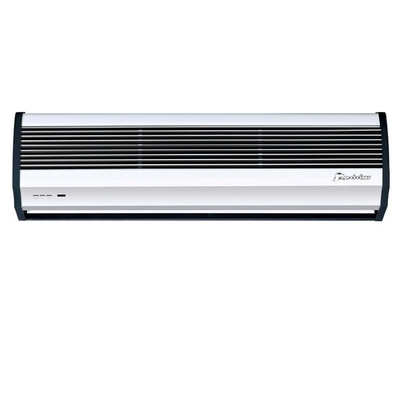

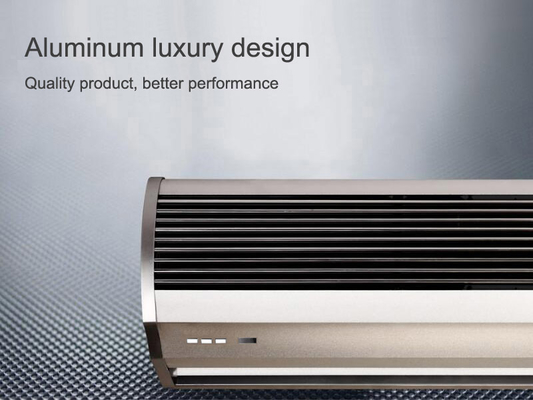

5G Series EC Motor Air Curtain 230V 2000m³/h for Doors 0
5G Series EC Motor Air Curtain 230V 2000m³/h for Doors 1
5G Series EC Motor Air Curtain 230V 2000m³/h for Doors 2
Applications

Ideal for various commercial and industrial settings including:

  • Hotels and restaurants
  • Retail stores and shopping centers
  • Food & beverage facilities
  • Building material shops
  • Printing shops and advertising companies
Manufacturer Information

Professional manufacturer with over 15 years of experience, operating from a 30,000 square meter factory with advanced equipment and technology. Our global sales network provides comprehensive support and service worldwide.
