Features

Specifications

Operating Voltage: 230 VAC

Mounting Type: Wall / Window Mount

Dimensions: 900x200x156mm

Airflow: 2000m³/h

Weight: 10 KG

Fan Type: Cross Flow Air Curtain

Material: Metal Cabinet & Cover

Remote Control: Yes

Fan Speed: 2 Speeds

Power Supply: 220-240/110V 50/60HZ

Installation Height: 2.3-3m

Max Input Power: 110-200W

Air Volume: 1250-2650 M3/h

Air Velocity: 8-10.5 M/s

Noise Level: 53-56 DB

Highlight:

compact air curtain 900mm

230VAC air curtain with remote

door entrance air curtain

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Theodoor

Payment & Shipping Terms

Gallery

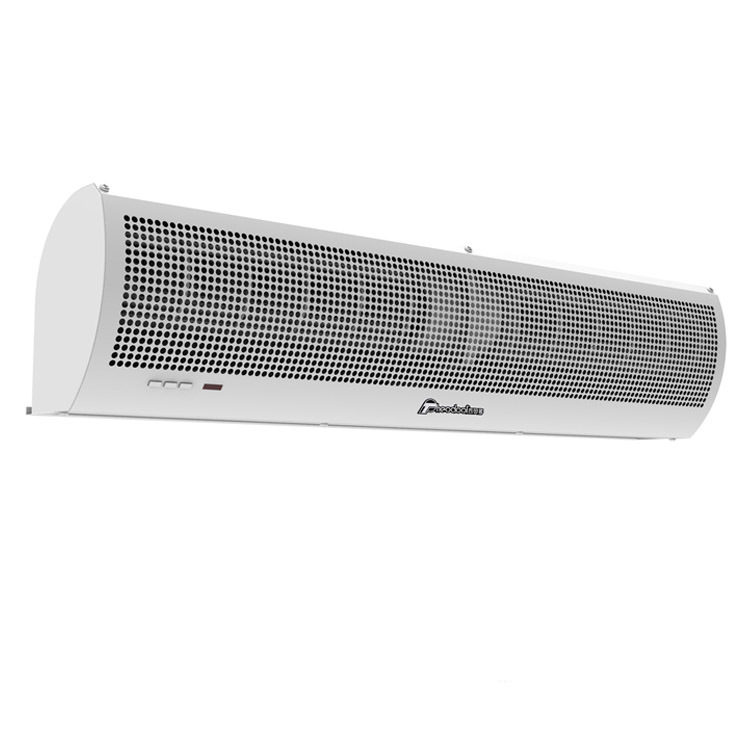

Compact Air Curtain 900mm 230VAC for Door Entrance with Remote Control

Product Description

Compact Four Seasons Wind Air Curtain for Door Entrance/Exit

Product Overview

This high-performance air curtain creates an invisible barrier to maintain indoor temperature while preventing dust, pests, and fumes from entering. Ideal for commercial entrances in hotels, restaurants, and stores.

Key Specifications

Type	Air Curtain
Operating Voltage	230 VAC
Mounting Type	Wall / Window Mount
Warranty	1 Year
Dimensions (L×W×H)	900×200×156mm
Airflow	2000m³/h
Weight	10 KG
Material	Metal cabinet & cover
Color	White

Key Features

Metal cover with powder coating for durability

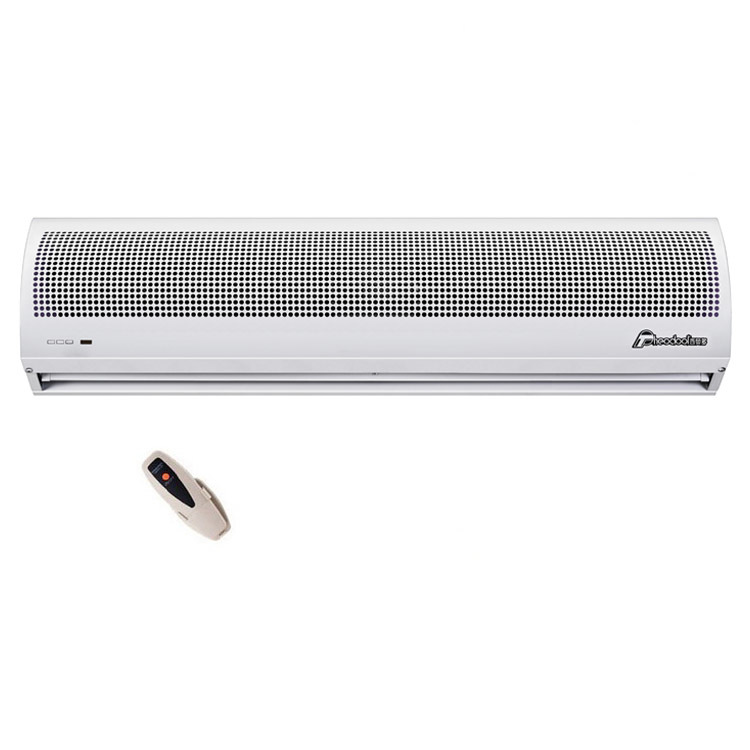

Remote control or manual switch operation
Cross flow type air flow for optimal performance
Recommended installation height: 2.3-3m
Available in multiple sizes: 0.9m, 1.2m, 1.5m, 1.8m
Two adjustable fan speeds
Optional door switch available

Technical Specifications

Model	Dimension (mm)	Voltage (V~)	Max Input Power (W)	Air Volume (m³/h)	Noise (dB)
FM-3009F/Y	900×200×156	220	110	1250	53
FM-3012F/Y	1200×200×156	220	140	1700	54
FM-3015F/Y	1500×200×156	220	180	2200	55
FM-3018F/Y	1800×200×156	220	200	2650	56

About Air Curtains

Theodoor Air Curtain creates an invisible barrier when installed above entryways of commercial spaces. It effectively isolates indoor and outdoor environments, maintaining temperature and humidity levels while preventing the entry of dust, pests, and fumes.

When used with air conditioning systems, air curtains significantly improve energy efficiency by reducing cool air loss. This creates a comfortable indoor climate while lowering operational costs.
