Centrifugal Air Curtain 3.5m Height 60-200cm Width 2-Speed Remote Control

50
MOQ
$99-199
Price
Centrifugal Air Curtain 3.5m Height 60-200cm Width 2-Speed Remote Control
Features Gallery Product Description Request A Quote
Features
Specifications
Mounting Type: Wall / Window Mount
Weight: 15 Kg
Fan Motors Type: AC
Fan Type: Centrifugal Fan
Material: Aluminum
Fan Speed: 2-speed
Air Velocity: 16-20m/s
Control: Remote+buttom
Installation Height: 3-4m
Frequency: 50/60 Hz
Voltage: 220-240 V~
Max Input Power: 230-600 W
Air Volume: 900-2850 M³/h
Noise Level: 49-63 DB
Dimension: 900-2000×220-240×230-240 Mm
Highlight:

compact air curtain with remote control

,

centrifugal air curtain 3.5m height

,

air curtain 60-200cm width 2-speed
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor
Payment & Shipping Terms
Product Description
Centrifugal Gate Air Curtain for Door Height 3.5m Width 60cm to 200cm With CE-CB
Product Features
  • Fashionable aluminum body design, resistant to rust and discoloration
  • Screw-free exterior for elegant appearance
  • High-performance motor for safe and reliable operation

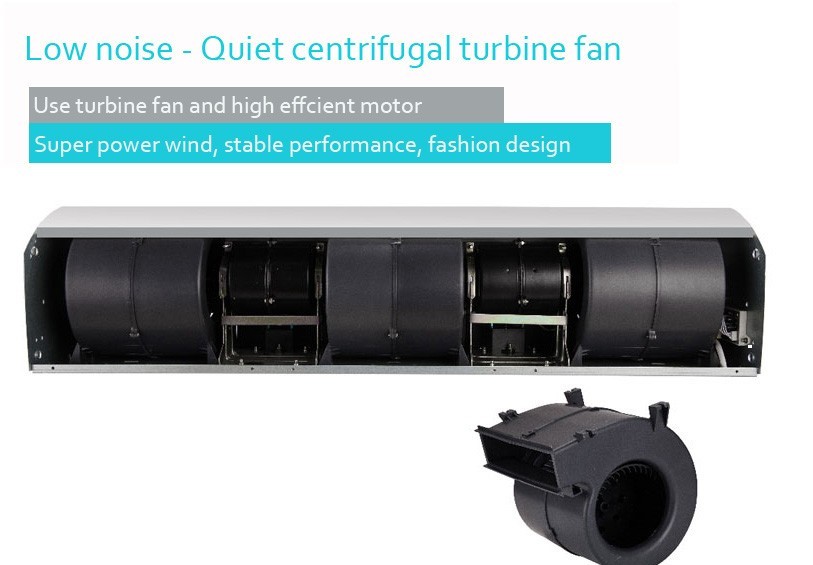

  • Centrifugal turbine creates higher air velocity

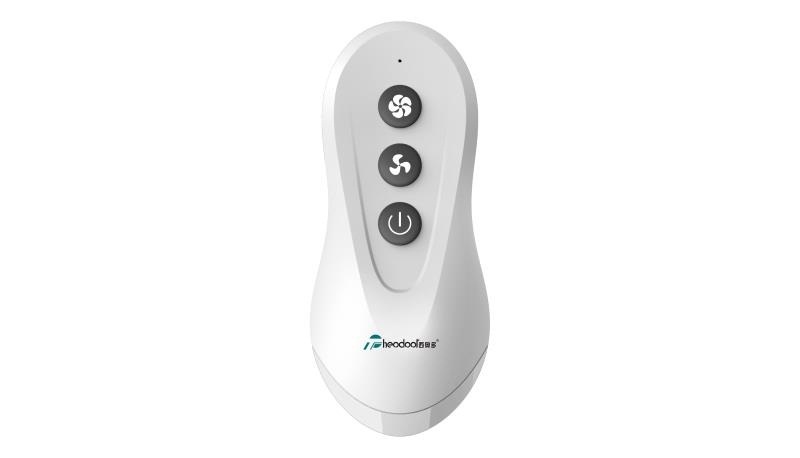

  • Updated remote control with high and low speed operation
  • Ideal for luxury hotels, supermarkets, stadiums, and airport terminals
  • Installation height: 3-4m
Key Specifications
Model Dimension (mm) Frequency (Hz) Voltage (V~) Max Input Power (W) Air Volume (m³/h) Air Velocity (m/s) Noise (dB) Net Weight (kg)
FM-3509-L/YS6 900×220×240 50/60 220-240 230/200 1100/900 16/13 52/49 13.5
FM-3510-L/YS6 1000×220×240 50/60 220-240 250/220 1200/1000 16/13 52/49 14
FM-3512-L/YS6 1200×220×240 50/60 220-240 290/260 1500/1200 16/13 53/50 16
FM-3515-L/YS6 1500×220×240 50/60 220-240 380/350 1900/1500 16/13 55/52 20.5
FM-3518-L/YS6 1800×220×240 50/60 220-240 450/420 2280/1800 16/13 57/54 24
FM-3520-L/YS6 2000×220×240 50/60 220-240 470/440 2520/2100 16/13 58/56 27.5
Product Variants
Centrifugal Air Curtain 3.5m Height 60-200cm Width 2-Speed Remote Control 0 Centrifugal Air Curtain 3.5m Height 60-200cm Width 2-Speed Remote Control 1 Centrifugal Air Curtain 3.5m Height 60-200cm Width 2-Speed Remote Control 2
Key Benefits
  • Dust-proof and insect prevention
  • Odor isolation
  • Energy saving
  • Comfortable heating
Theodoor Air Curtain is designed for installation above entryways of stores, restaurants, and hotels. It effectively isolates indoor and outdoor air convection, maintaining temperature and humidity levels. Particularly effective when used with air conditioning systems, it helps preserve indoor environments while reducing energy consumption of refrigeration equipment. Additionally, it prevents the intrusion of dust, pests, and harmful fumes from outside, ensuring a comfortable indoor climate.
The air curtain serves as an excellent complement to air conditioning systems, enhancing cooling efficiency. It creates an invisible air barrier that maintains clean, fresh air within indoor environments.
Centrifugal Air Curtain 3.5m Height 60-200cm Width 2-Speed Remote Control 3 Centrifugal Air Curtain 3.5m Height 60-200cm Width 2-Speed Remote Control 4
Packaging & Shipping
Centrifugal Air Curtain 3.5m Height 60-200cm Width 2-Speed Remote Control 5
Our Services
  • OEM and ODM services
  • Custom label and box design
  • Shipping arrangement
  • After-sales spare parts support
FAQ
How to select the right air curtain?
Consider these factors when choosing an air curtain:
  • Application requirements
  • Door height and width
  • Outside wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Air curtain size
  • Design and appearance
  • Noise level
