SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors

10
MOQ
$399
Price
SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors
Features Gallery Product Description Request A Quote
Features
Specifications
Mounting Type: Wall / Window Mount

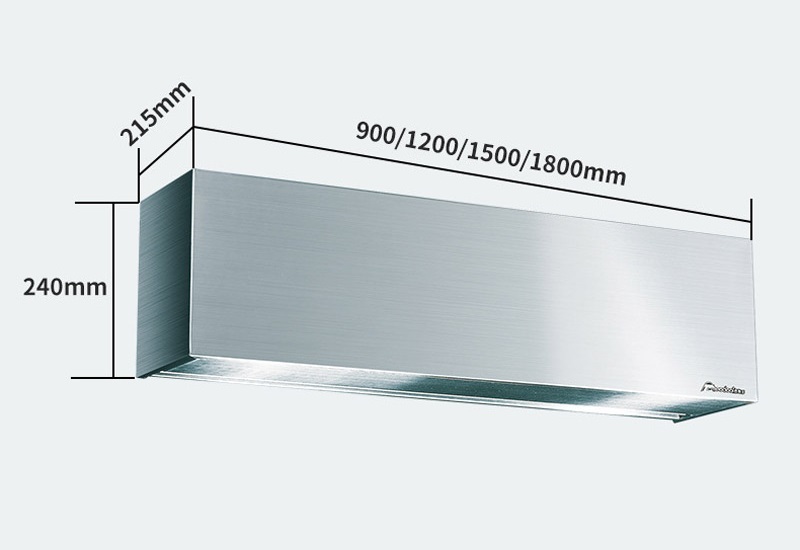

Dimension: 1500x215x240mm
Weight: 25 KG
Material: Stainless Steel 304
Air Speed: 16-20m/s
Fan Type: Centrifugal Fan
Available Sizes: 900, 1000, 1200, 1500, 1800mm
Speed Settings: 2-speed
Voltage/Frequency: 220v/50Hz
Input Power (Hi): 380W
Input Power (Lo): 350W
Air Flow (Hi): 1900 M3/h
Air Flow (Lo): 1500 M3/h
Noise Level (Hi): 55 DB
Noise Level (Lo): 52 DB
Highlight:

SS304 stainless steel air curtain

,

1500mm compact air curtain

,

air curtain for 2.5-4m doors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor
Model Number: FM-3515S-L
Payment & Shipping Terms
Product Description
Stainless Steel SS304 FM-3515S-L Residential Air Curtain for 2.5-4m Door
High-performance stainless steel air curtain designed for residential and commercial applications with doors ranging from 2.5 to 4 meters.
Key Features
  1. Convenient on/off switch operation
  2. Dual-speed control for adjustable airflow
  3. Premium stainless steel (SS304) exterior cover
  4. Centrifugal type air flow system
  5. Ideal for 3-4m door applications
  6. Available in multiple sizes: 900mm, 1,000mm, 1,200mm, 1,500mm, 1,800mm
Technical Specifications
Model Size (mm) Volt./Freq. Input Power (W) Air Flow (m³/h) Air Speed (m/s) Noise (dB) N.W (kg)
FM-3509S-L 900×215×240 220v/50Hz 230/200 1100/900 13-16 52/49 14
FM-3510S-L 1000×215×240 220v/50Hz 250/220 1200/1000 13-16 52/49 15
FM-3512S-L 1200×215×240 220v/50Hz 290/260 1500/1200 13-16 53/50 18.5
FM-3515S-L 1500×215×240 220v/50Hz 380/350 1900/1500 13-16 55/52 25
FM-3518S-L 1800×215×240 220v/50Hz 450/420 2200/1800 13-16 57/54 30
Product Advantages
Easy Maintenance: Stainless steel (304) covers provide superior rust resistance and easy cleaning.

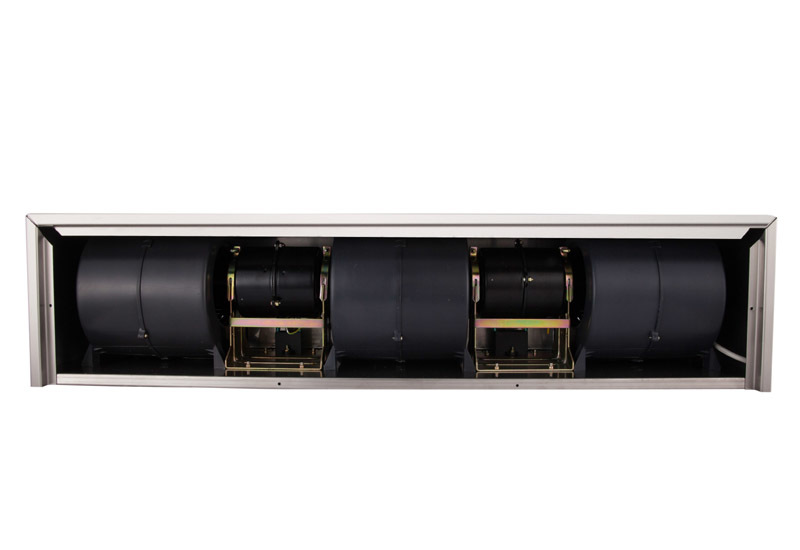

Premium Construction: Features low-noise centrifugal turbine fan, high-velocity motor, and quality bearings for powerful air pressure and durable operation.

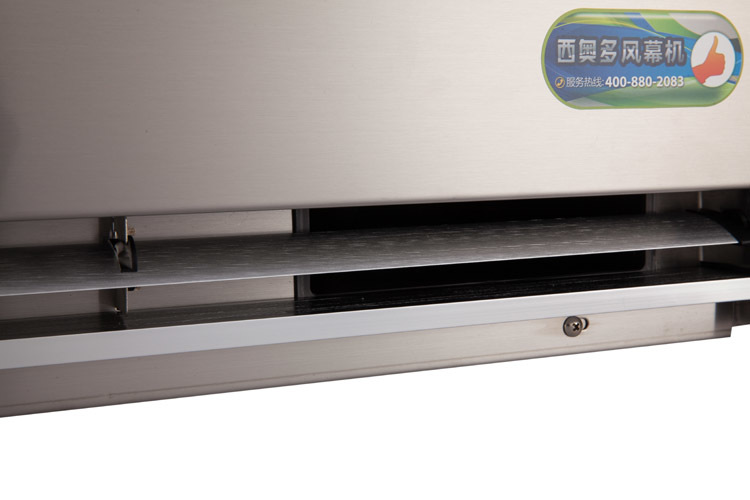

User-Friendly Design: Top air inlet with special air deflector and adjustable air direction. Selectable high/low air velocity controlled by remote or key switch.
Applications
Ideal for waiting rooms, food processing facilities, hotel kitchens, bakeries, and other commercial environments requiring temperature control and insect prevention.
SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors 0
SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors 1
SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors 2
SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors 3
Manufacturer Information
Theodoor Company is a professional manufacturer specializing in air curtains, heat pump water heaters, and ventilation systems. Our products feature superior performance, attractive designs, and fine craftsmanship. Certified with ISO9001, ISO14001, CCC, CE, ROHS, and UL standards.
SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors 4
SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors 5
SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors 6
SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors 7
