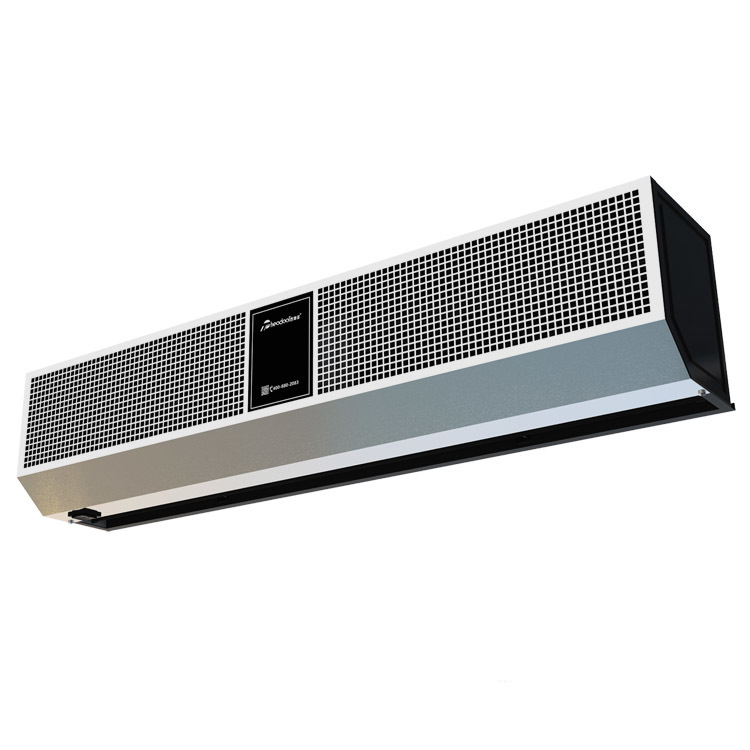

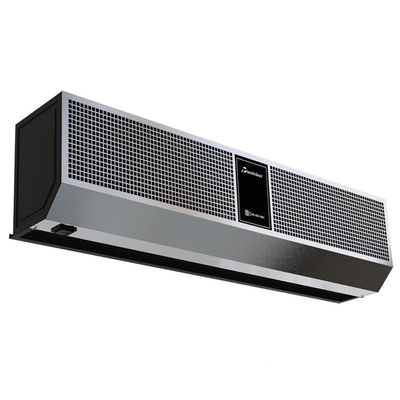

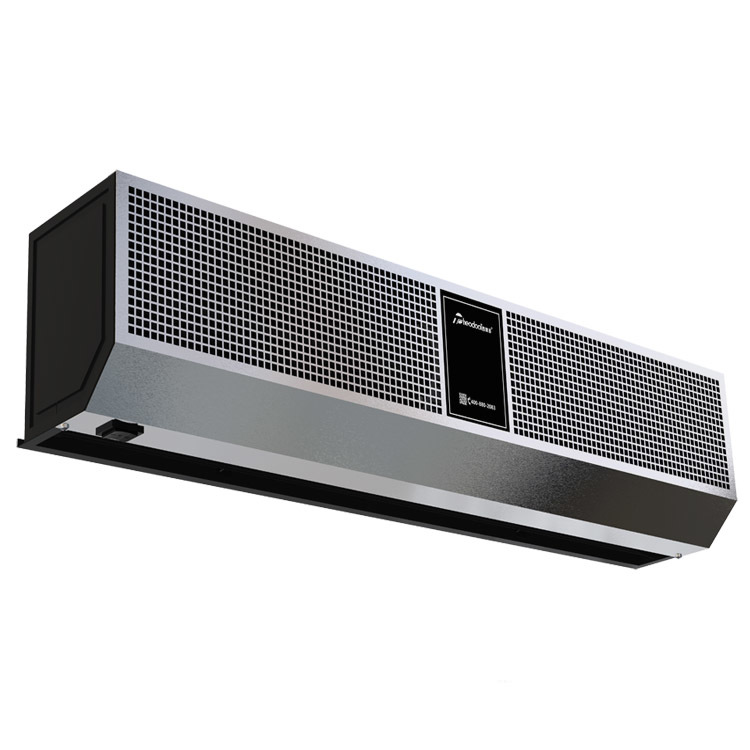

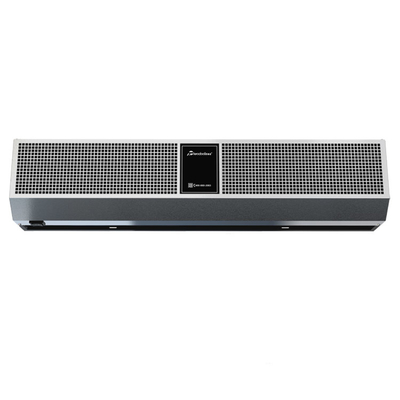

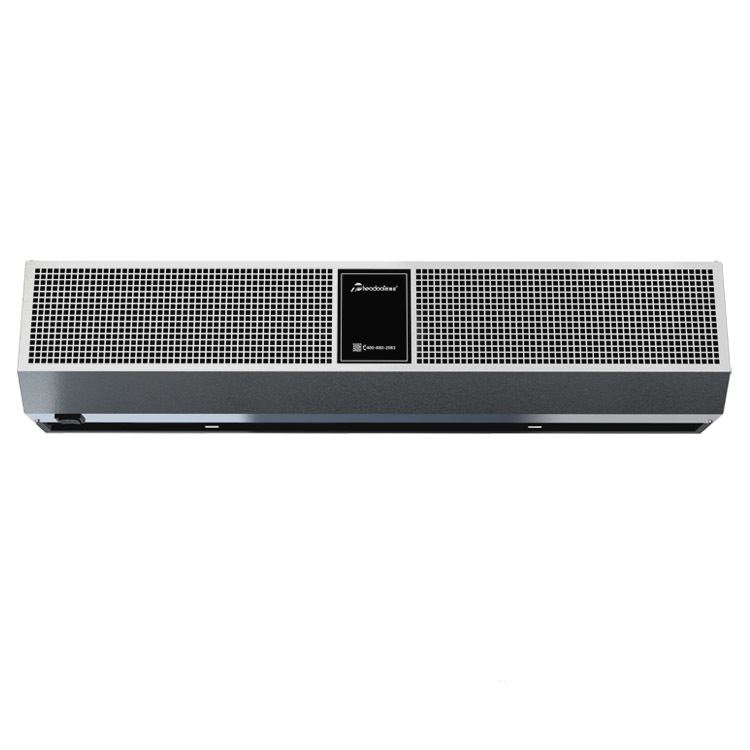

Stainless Steel Air Curtain 2000m³/h 230V for Energy Saving

10
MOQ
$99
Price
Stainless Steel Air Curtain 2000m³/h 230V for Energy Saving
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Voltage: 230 VAC
Mounting Type: Wall / Window Mount
Airflow: 2000m³/h
Weight: 10 KG
Fan Type: Cross Flow Type
Material: Stainless Steel Cover
Control Type: Manual Or Remote Control
Length Range: 0.9m-2m
Fan Speed: 2-speed
Motor Type: AC Type
Power Supply: 220-240V/1Ph/50Hz
Input Power: 160-350W
Air Volume: 1400-3600m³/h
Air Speed: 10-12m/s
Noise Level: ≤57-61db
Highlight:

stainless steel air curtain 2000m³/h

,

compact air curtain 230V

,

energy saving air curtain stainless steel
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor
Payment & Shipping Terms
Product Description
Electric Door Air Curtains A5 Series
Premium Stainless Steel Cover with 12m/s Air Speed
Electric Door Air Curtains provide comfortable air conditioning while saving energy and maintaining clean indoor environments.
Key Features

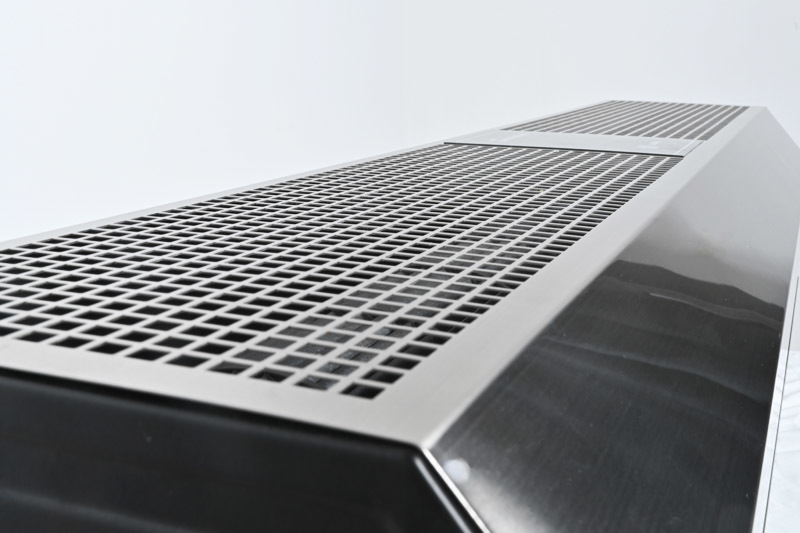

  • #304 Stainless Steel Design: Fingerprint-resistant, durable construction that resists deformation and rust while remaining easy to clean
  • High Performance Motor: High-speed pure copper silicon steel motor tested for 8000+ hours of continuous operation
  • Dynamic Balanced Fan: Ball bearing fan wheels for low noise and stable performance
  • Dual Speed Control: Operated via remote control or key switch
  • Compact Design: Space-saving structure ideal for commercial entrances
Technical Specifications
Model Size (mm) Input Power (W) Air Volume (m³/h) Air Speed (m/s) Noise (dB) Net Weight (Kg)
FM-3509A (SS) 900x175x195 160 1400 10-12 ≤57 8
FM-3510A (SS) 1000x175x195 180 1600 10-12 ≤58 9
FM-3512A (SS) 1200x175x195 200 1900 10-12 ≤58 10
FM-3515A (SS) 1500x175x195 230 2500 10-12 ≤59 11.5
FM-3518A (SS) 1800x175x195 300 3200 10-12 ≤60 13.5
FM-3520A (SS) 2000x175x195 350 3600 10-12 ≤61 15
Stainless Steel Air Curtain 2000m³/h 230V for Energy Saving 0 Stainless Steel Air Curtain 2000m³/h 230V for Energy Saving 1 Stainless Steel Air Curtain 2000m³/h 230V for Energy Saving 2
Applications

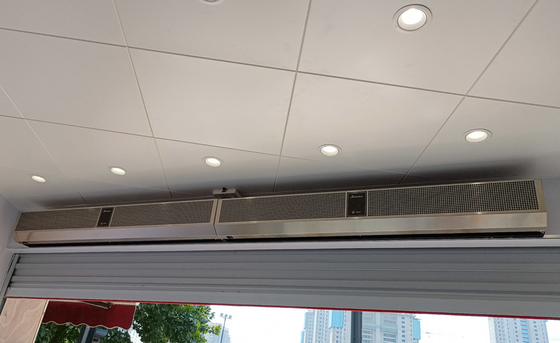

Installed above entryways, Theodoor Air Curtains effectively isolate indoor and outdoor environments, maintaining temperature and humidity while preventing dust, pests, and fumes from entering.
Commercial Use:
Supermarkets, shopping malls, department stores, small shops, hotels, restaurants, hospitals, schools, theaters, fitness centers, clubs, bars, cafes, barbershops, waiting rooms, subway stations, commercial buildings, museum entrances		 Industrial Use:
Factories, workshops, warehouses, spinning mills, frozen goods facilities, paint factories, large kitchens
Competitive Advantages
  • Modern, stylish design
  • Advanced manufacturing technology ensuring product reliability
  • 100% performance testing on all units
Stainless Steel Air Curtain 2000m³/h 230V for Energy Saving 3 Stainless Steel Air Curtain 2000m³/h 230V for Energy Saving 4
Our Services
  • OEM/ODM services available
  • Custom label and box design
  • Shipping arrangement
  • After-sales spare parts support
Frequently Asked Questions
What are the main functions of Air Curtain?
  • Dust-proof and insect prevention
  • Odor isolation
  • Energy saving
  • Comfortable heating
How to select suitable air curtain?
Consider these factors when selecting an air curtain:
  • Application requirements
  • Door height and width
  • Outside wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Unit size and design
  • Noise level requirements
  • Power consumption
