Features

Specifications

Operating Voltage: 230 VAC

Mounting Type: Wall / Window Mount

Airflow: 2000m³/h

Weight: 15 KG

Fan Type: Cross Flow Type

Unit Length: 600 To 2000 Mm

Color: Stainless Steel

Fan Speed: 2 Speed

Motor Power: 140-350 W

Air Volume: 840-3600 M3/h

Air Speed: 9-13 M/s

Noise Level: 54-71 DB

Dimensions: 600-2000x180-260x215-260 Mm

Frequency: 50Hz

Continuous Operation: 5000 Hours

Highlight:

Titan 1 Series stainless steel air curtain

Compact air curtain 2000m³/h

230VAC air curtain with warranty

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Theodoor

Payment & Shipping Terms

Gallery

Titan 1 Series Stainless Steel Air Curtain 2000m³/h 230VAC

Product Description

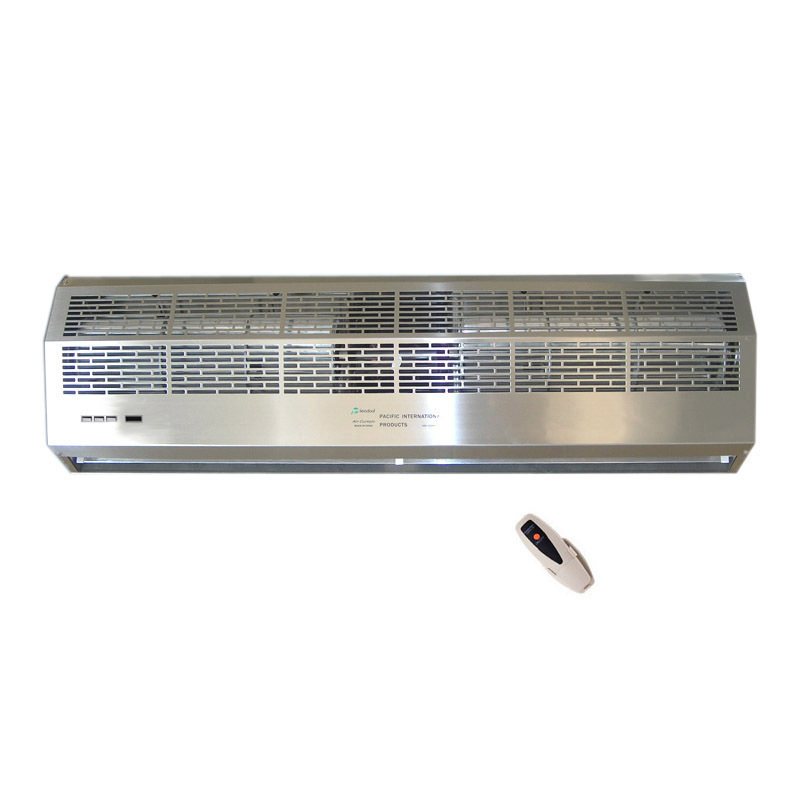

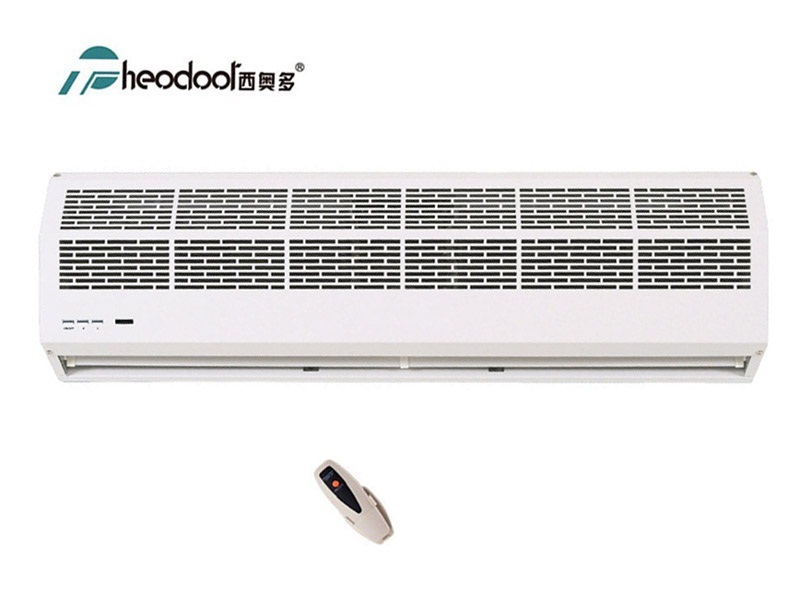

Titan 1 Series Air Barrier Over Door Stainless Steel Air Curtain

Entryway 72 Inch Residential Air Curtain / Door Air Cutter With Steel Cover

Specifications

Model	Size (mm)	Volt./ Freq.	Motor power(W)	Air volume (m3/h)	Air speed (m/s)	Noise (dB)	N.W(kg)
				Hi	Lo	Hi	Lo	Hi	Lo
FM-1206SA1	600x180x215	220v~ 50Hz	140	90	840	680	9-11	55	54	8.5
FM-1209SA1	900x180x215		160	110	1400	1100		57	55	10.5
FM-1210SA1	1000x180x215		180	130	1600	1300		58	56	11.5
FM-1212SA1	1200x180x215		200	150	1900	1600		58	56	13.5
FM-1215SA1	1500x180x215		230	180	2500	2000		59	57	15
FM-1218SA1	1800x180x215		300	250	3200	2600		60	58	20
FM-1220SA1	2000x180x215		350	300	3600	2900		61	59	22
FM-1509SA1	900x220x260	220v~ 50Hz	230	180	2000	1600	10-13	67	65	15
FM-1512SA1	1200x220x260		350	300	2800	2200		69	67	19
FM-1515SA1	1200x220x260		430	380	3600	2800		71	69	23

Key Features

Compact design with stainless steel cover, easy installation and simple maintenance

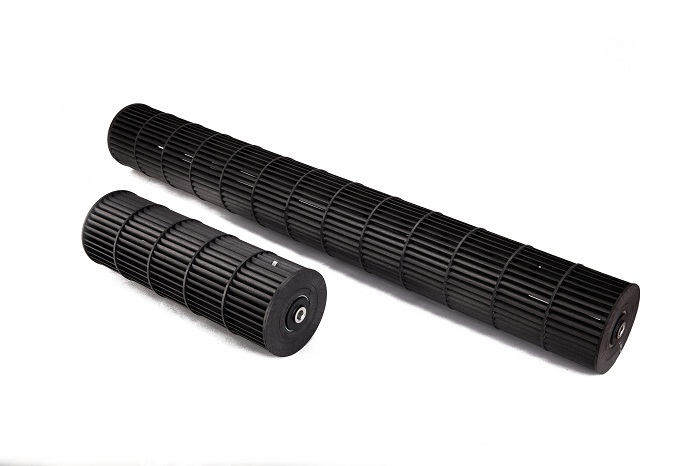

Optimized fan wheel provides stable & even air flow with large air volume and low noise performance
Reliable motor design with overheating protector and safety operation of 5000 hours continuously without defect

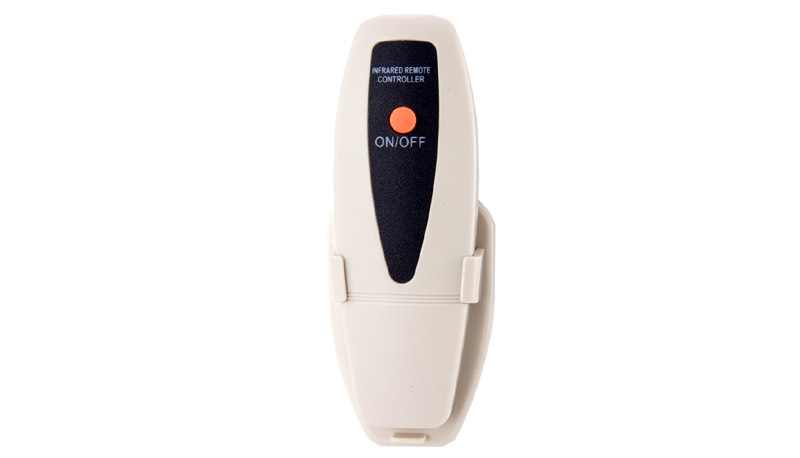

Remote control or touch switch operation with adjustable high and low air velocity settings
Two series available with different air velocities (9-11m/s, 10-13m/s) suitable for cafeterias, bakeries, restaurants, retail shops, department stores, and sports centers

What is an Air Curtain?

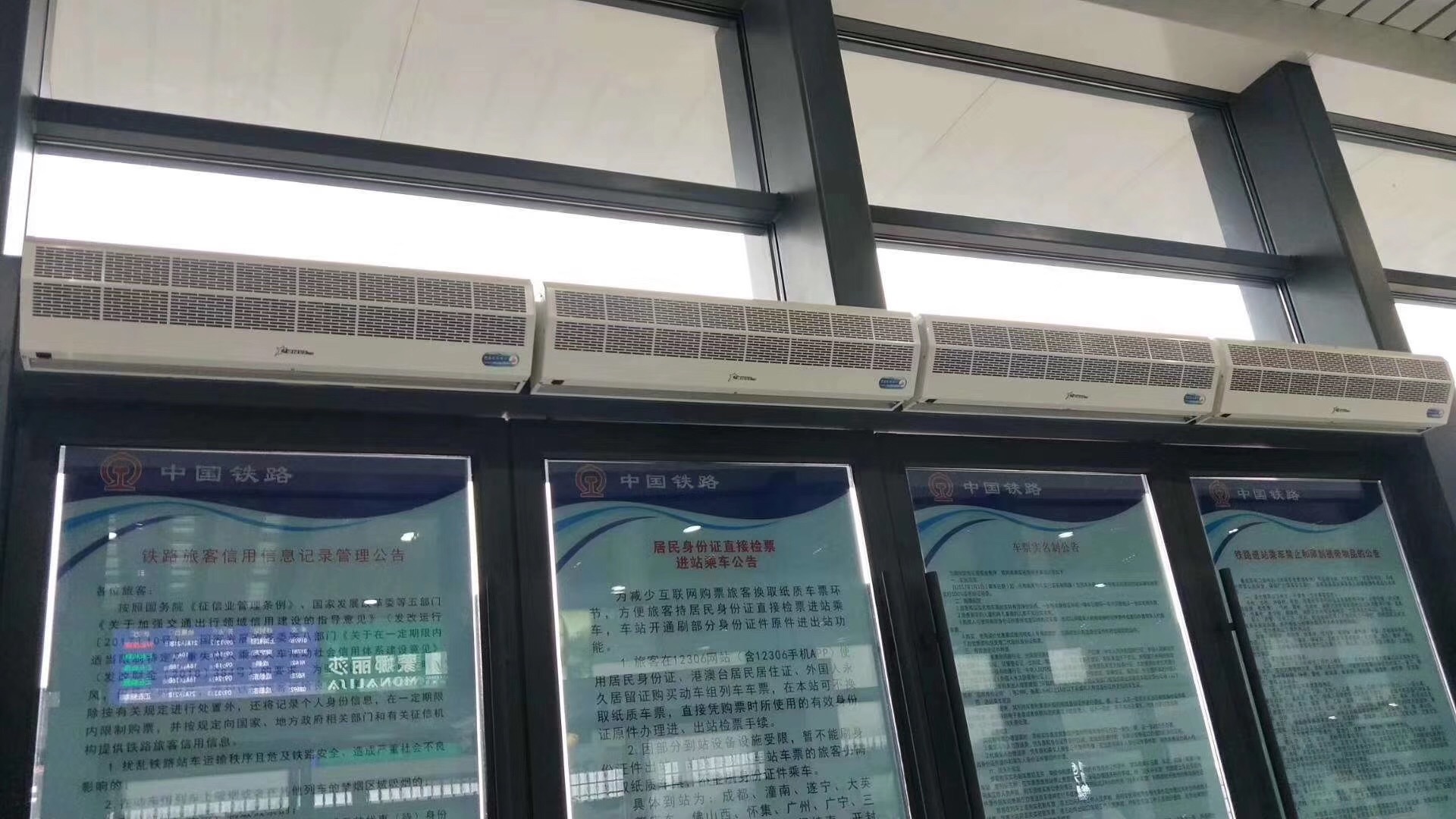

Theodoor Air Curtains are installed above entryways of stores, restaurants, hotels and other commercial spaces. They effectively isolate indoor and outdoor environments, maintaining temperature and humidity levels. Particularly useful in air-conditioned spaces, they help conserve energy by reducing the load on refrigeration equipment. Additionally, air curtains prevent the intrusion of dust, pests, and harmful fumes from outside, maintaining a comfortable and clean indoor climate.

Packaging & Shipping

Our Services

OEM and ODM services
Custom label and box design
Shipping arrangement
After-sales spare parts support

Frequently Asked Questions

What are the main functions of an Air Curtain?

Dust-proof and insect prevention
Odor isolation
Energy saving
Comfortable heating

How to select a suitable air curtain?

Several factors should be considered when selecting an air curtain:

Application requirements
Door height and width
Outside wind conditions
Building static pressure
Door structure
Ambient temperature
Air curtain size specifications
Design and aesthetic requirements
Noise level limitations
Power consumption considerations
