230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control

50
MOQ
$199
Price
230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control
Features Gallery Product Description Request A Quote
Features
Specifications
Blade Material: Plastic
Voltage: 230V
Power Supply: 110v/115v/220v
Size: 0.9m, 1m, 1.2m, 1.5m, 1.8m
Cover Material: Stainless Steel
Mounting Type: Ceiling Type (concealed)
Fan Speed: 2 Speeds
Control Method: Power On Or Remote Control
Type: Centrifugal Fan
Frequency: 50Hz
Input Power: 230W, 200W, 290W, 260W, 380W, 350W, 300W, 270W, 400W, 370W, 500W, 470W
Air Volume: 1100m3/h, 900m3/h, 1500m3/h, 1200m3/h, 1900m3/h, 1500m3/h, 1400m3/h, 1000m3/h, 1900m3/h, 1500m3/h, 2300m3/h, 1900m3/h
Air Velocity: 16m/s, 13m/s, 20m/s, 16m/s
Noise Level: 52dB, 49dB, 53dB, 50dB, 55dB, 52dB, 57dB, 54dB, 58dB, 55dB, 61dB, 58dB
Net Weight: 17kg, 22kg, 27kg
Highlight:

230V ceiling mount air curtain

,

compact concealed air curtain

,

remote control air curtain 0.9m
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor
Certification: CCC
Payment & Shipping Terms
Product Description

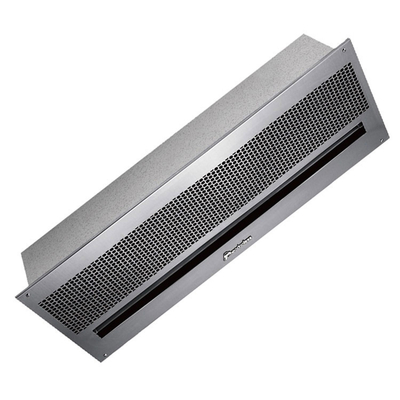

Centrifugal Ceiling Mount Concealed Air Curtain Door Gate Barrier at 230V for 3-4m

This centrifugal ceiling-mounted concealed air curtain is designed for high-grade glass doors where horizontal installation isn't possible or vertical side space is limited. The recessed ceiling design makes it ideal for special architectural environments.

Key Features
  • Recessed ceiling or ceiling-hung design for space-constrained installations

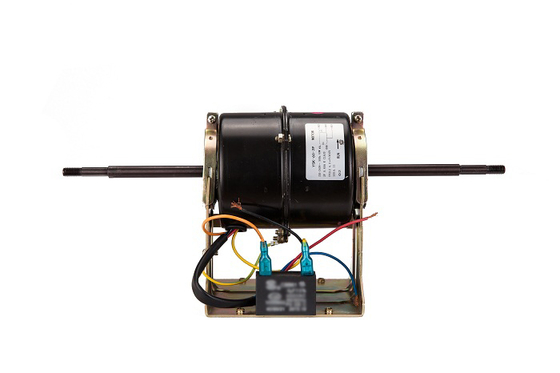

  • High-velocity motor with centrifugal turbine fan for powerful air pressure
  • Scientific air duct design ensures lower noise operation
  • Full steel cabinet with stainless steel air inlet covers for durability
  • Fireproof construction with easy-clean surfaces
  • Remote control or key switch operation with selectable high/low air velocity
  • Rust-proof materials for long service life
Technical Specifications
Model Dimension (mm) Frequency (Hz) Voltage (v~) Input Power (W) Air Volume (m³/h) Air Velocity (m/s) Noise (dB) Net Weight (kg)
FM-3509CS 900×235×320 50 220-240 230/200 16/13 1100/900 52/49 17
FM-3512CS 1200×235×320 50 220-240 290/260 16/13 1500/1200 53/50 22
FM-3515CS 1500×235×320 50 220-240 380/350 16/13 1900/1500 55/52 27
FM-4009CS 900×235×320 50 220-240 300/270 20/16 1400/1000 57/54 17
FM-4012CS 1200×235×320 50 220-240 400/370 20/16 1900/1500 58/55 22
FM-4015CS 1500×235×320 50 220-240 500/470 20/16 2300/1900 61/58 27
Product Images
230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control 0 230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control 1 230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control 2 230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control 3 230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control 4 230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control 5 230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control 6 230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control 7 230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control 8
Company Information
PRECISION PRODUCTION

Founded in 2002, Theodoor operates from a 30,000 square meter facility in Guangzhou's innovation hub. Our modern production workshop features advanced industrial equipment and testing instruments to ensure product precision and reliability.

INNOVATION TECHNOLOGY

Theodoor maintains national standard environmental simulation and long-running test laboratories. With over 80 national patents, we lead industry quality and performance standards. Our products meet ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications.

230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control 9 230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control 10 230V Ceiling Mount Concealed Air Curtain 0.9m to 1.8m with Remote Control 11
Frequently Asked Questions
Q: Are you a trading company or manufacturer?

A: We are the professional manufacturer based in China.

Q: How long is your delivery time?

A: Standard delivery is 25-30 days, depending on quantity and specifications.

Q: Do you provide samples? Is it free or charged?

A: Yes, we offer samples for a nominal charge.

Q: Why choose Theodoor?
  • 21+ years manufacturing experience with 100+ air curtain models
  • Professional R&D and engineering teams
  • Advanced machinery and technology for reliable performance
  • Quality materials with rigorous testing at every production stage
  • 100% product performance testing
  • Cost-effective, long-life products with excellent ROI
  • Responsive customer support
