Home /Products/Compact Air Curtain/Stainless Steel Air Curtain 1000RPM 16-20 m/s for Food Factory

Stainless Steel Air Curtain 1000RPM 16-20 m/s for Food Factory

50
MOQ
$299
Price
Stainless Steel Air Curtain 1000RPM 16-20 m/s for Food Factory
Features Gallery Product Description Request A Quote
Features
Specifications
Blade Material: Stainless Steel
Voltage: Customized
Speed: 1000RPM
Power Supply: AC 220-240V
Noise Level: 40db And Above
Mounting Height: 3.5-4m
Size Width: 0.9m, 1m, 1.2m, 1.5m, 1.8m
Impeller Type: Dynamic Balanced ABS Fan
Air Speed: 16 - 20 M/s
Input Power: 230W - 600W
Air Flow: 1100 - 2850 M3/h
Noise Level Hi: 52 - 61 DB
Noise Level Lo: 49 - 58 DB
Net Weight: 14 - 30 Kg
Casing Material: Stainless Steel
Highlight:

Stainless Steel Air Curtain for Food Factory

,

Compact Air Curtain 1000RPM

,

Air Curtain 16-20 m/s
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor or OEM
Model Number: FM-3509S-L, FM-4009S-L
Payment & Shipping Terms
Product Description
High Performance Centrifugal Fan Blower Stainless Steel Air Curtain 16 - 20 m/s
Premium Stainless Steel Air Curtain with High Performance Motor
The Theodoor High Performance Air Curtain features a durable stainless steel construction with centrifugal turbine technology for superior air velocity and energy efficiency. Ideal for commercial and industrial applications.
Key Features:
  • Premium stainless steel cabinet - rustproof and maintains elegant appearance
  • High-performance motor for reliable operation
  • Centrifugal turbine design creates higher air velocity (16-20 m/s)
  • Includes updated remote control with high/low speed operation
  • Ideal for luxury hotels, supermarkets, stadiums, and airport terminals
  • Steady and effective performance with durable construction

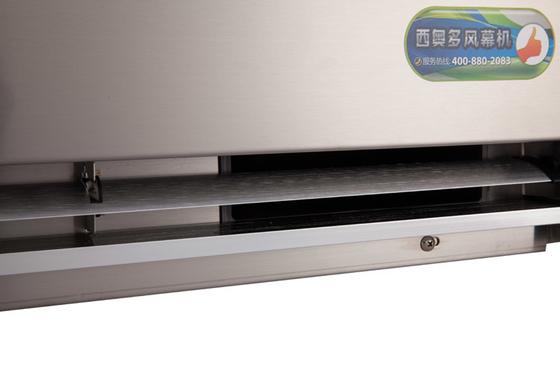

Stainless Steel Air Curtain 1000RPM 16-20 m/s for Food Factory 0
Stainless Steel Air Curtain 1000RPM 16-20 m/s for Food Factory 1
Stainless Steel Air Curtain 1000RPM 16-20 m/s for Food Factory 2
Product Specifications:

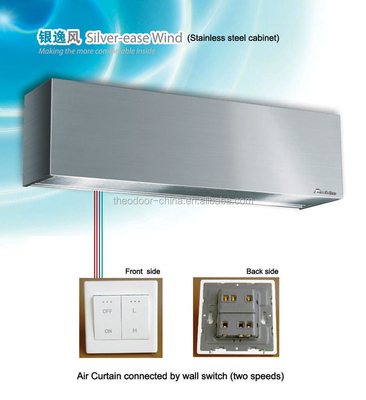

  • Switch control operation
  • Two-speed settings
  • Stainless steel protective cover

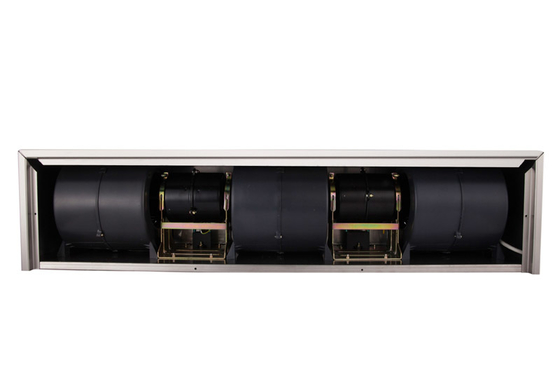

  • Centrifugal type air flow system
  • Designed for 3-4m door openings
  • Available sizes: 900mm, 1,000mm, 1,200mm, 1,500mm, 1,800mm
Technical Specifications:
Model Size (mm) Volt./Freq. Input Power (W) Air Flow (m³/h) Air Speed (m/s) Noise (dB) N.W (kg)
FM-3509S-L 900×215×240 220v/50Hz 230/200 1100/900 13-16 52/49 14
FM-3510S-L 1000×215×240 220v/50Hz 250/220 1200/1000 13-16 52/49 15
FM-3512S-L 1200×215×240 220v/50Hz 290/260 1500/1200 13-16 53/50 18.5
FM-3515S-L 1500×215×240 220v/50Hz 380/350 1900/1500 13-16 55/52 25
FM-3518S-L 1800×215×240 220v/50Hz 450/420 2200/1800 13-16 57/54 30
FM-4009S-L 900×215×240 220v/50Hz 300/270 1400/1000 16-20 57/54 14
FM-4010S-L 1000×215×240 220v/50Hz 320/290 1550/1100 16-20 57/54 15
FM-4012S-L 1200×215×240 220v/50Hz 400/370 1900/1500 16-20 57/55 18.5
FM-4015S-L 1500×215×240 220v/50Hz 500/470 2300/1900 16-20 58/55 25
FM-4018S-L 1800×215×240 220v/50Hz 600/570 2850/2250 16-20 61/58 30

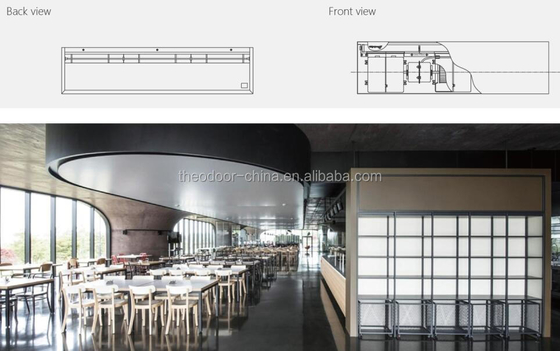

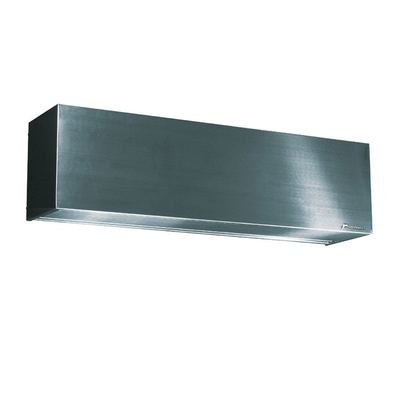

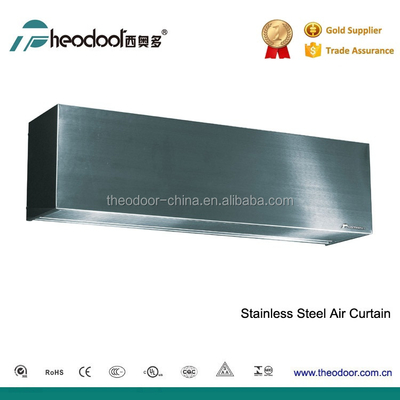

Stainless Steel Air Curtain 1000RPM 16-20 m/s for Food Factory 3
Stainless Steel Air Curtain 1000RPM 16-20 m/s for Food Factory 4
Stainless Steel Air Curtain 1000RPM 16-20 m/s for Food Factory 5
Stainless Steel Air Curtain 1000RPM 16-20 m/s for Food Factory 6
