SS304 Vertical Air Curtain for 3-4m Entrances 18m/s Airflow

10
MOQ
$1,399
Price
SS304 Vertical Air Curtain for 3-4m Entrances 18m/s Airflow
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 220V
Fan Diameter: 148mm
Motor Power: 0.85-1.70kW
Max Air Velocity: 18-73m/s
Noise Level: 64-73dB
Air Volume: 6790-13580m3/h
Weight: 57-113kg
Width: 480mm
Depth: 330mm
Height: 2000-4000mm
Material: SS304 Stainless Steel
Motor Type: High-performance
Fan Type: Centrifugal Turbine
Installation Type: Vertical
Suitable Entrance Width: 3-4m
Highlight:

SS304 vertical air curtain

,

compact air curtain for 3-4m entrances

,

18m/s airflow air curtain
Basic Infomation
Payment & Shipping Terms
Product Description
Floor Standing Door Air Curtain in SS304 Vertical Door Fan for 3-4m Wide Entrance
Product Features
  • Stainless steel (SS304) cabinet design prevents rust and discoloration
  • High-grade construction with elegant appearance
  • High-performance motor for safe and reliable operation
  • Centrifugal turbine creates higher air velocity
  • Ideal for luxury hotels, supermarket chains, stadiums, and airport terminals
  • Designed for vertical installation at wide entrances (3-4m)
Technical Specifications
Model Voltage (V~) Fan Dia. (mm) Motor power (kW) Max air velocity (m/s) Noise (dB) Air volume (m³/h) Weight (Kg) Dimension (mm)
FM-LC2000S 220 148 0.85 18 64 6790 57 480×330×2000
FM-LC2500S 220 148 1.10 18 65 8450 70 480×330×2500
FM-LC3000S 220 148 1.25 18 67 10230 85 480×330×3000
FM-LC3500S 220 148 1.55 18 70 11860 102 480×330×3500
FM-LC4000S 220 148 1.70 18 73 13580 113 480×330×4000
Product Images

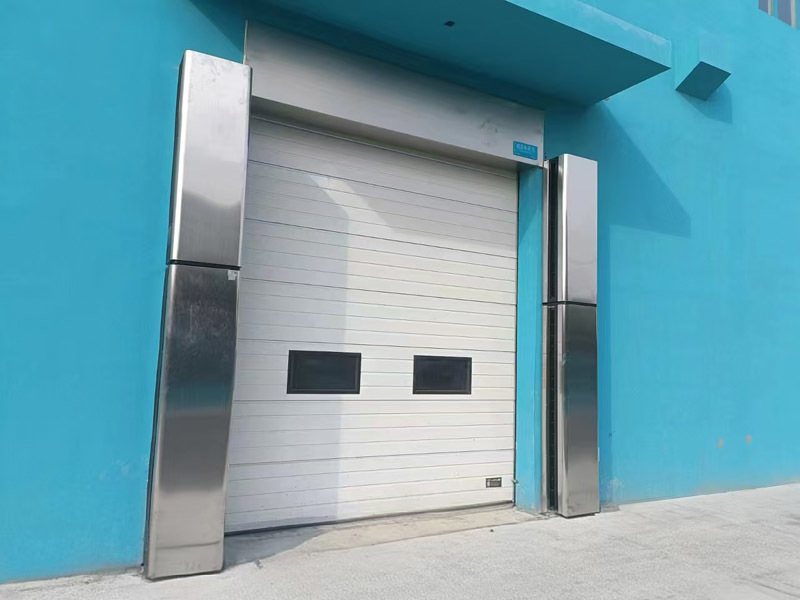

SS304 Vertical Door Air Curtain installed in commercial entrance

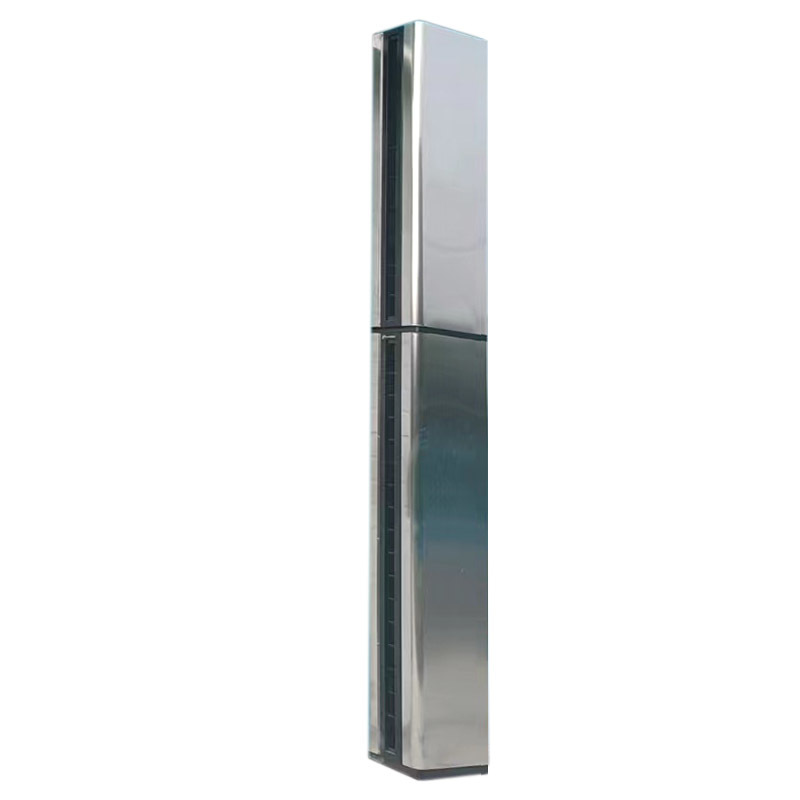

Close-up view of Floor Standing Air Curtain mechanism

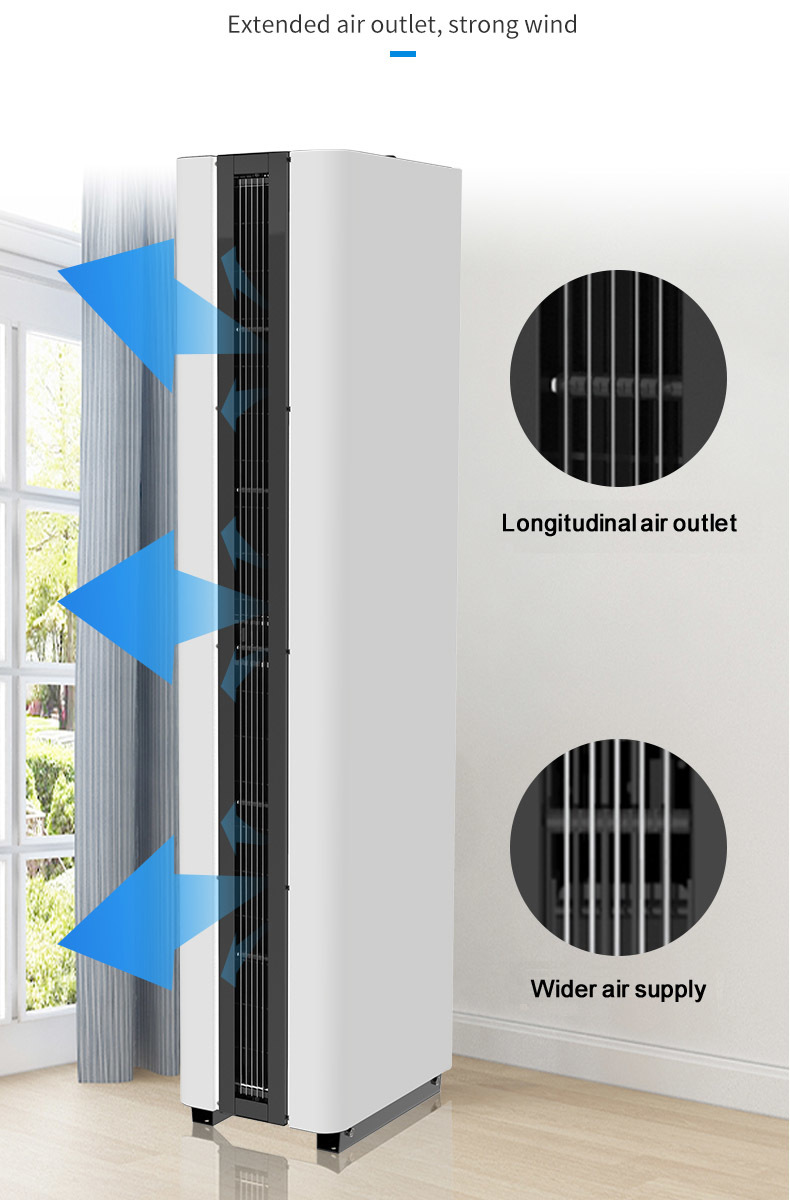

Vertical Air Curtain in operation at wide entrance
Why Choose Our Air Curtains?
  • 22+ Years Experience: Extensive manufacturing and export expertise with over 100 air curtain models
  • Professional Engineering: Dedicated R&D team focused on air curtain technology
  • Advanced Manufacturing: State-of-the-art machinery ensures product performance and reliability
  • Quality Materials: Commitment to safety, efficiency, and environmental protection at every production stage
  • Rigorous Testing: 100% product performance testing exceeds industry standards
  • Cost-Effective: Long-life, high-reliability design delivers excellent value
  • Responsive Support: Prompt customer service and technical assistance
Company Information
Manufacturing facility for air curtain production
Quality control inspection of air curtain components
Air curtain assembly line with skilled technicians
Finished air curtain units ready for shipment
Engineering team working on air curtain design
