Heavy Duty Industrial Air Curtain with 4000m³/h Airflow and 16m/s or 22m/s Air Velocity for High Performance

10
MOQ
Heavy Duty Industrial Air Curtain with 4000m³/h Airflow and 16m/s or 22m/s Air Velocity for High Performance
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Voltage: 230 VAC
Mounting Type: Wall / Window Mount
Airflow: 4000m³/h
Fan Material: Metal Fan
Fan Type: Cross Flow
Air Velocity: 16m/s Or 22m/s
Material: Galvanized Steel
Power: 220V Or 380V
Installation Height: 4-5m
Motor Power: 350W, 500W, 750W, 720W, 1050W
Air Volume: 2900m³/h, 3890m³/h, 4950m³/h, 4700m³/h, 7350m³/h
Noise Level: 57dB, 58dB, 59dB, 72dB, 74dB
Net Weight: 26.5kg, 31.5kg, 39.5kg, 29kg, 35kg
Size: 900x260x310mm, 1200x260x310mm, 1500x260x310mm, 900x338x366mm, 1200x338x366mm
Voltage Frequency: 50Hz
Highlight:

4000m³/h Airflow Industrial Air Curtain

,

16m/s Air Velocity Door Air Curtain

,

22m/s Air Velocity Industrial Air Curtain
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor
Certification: CCC
Payment & Shipping Terms
Product Description
Super Large Wind Heavy Duty Industrial Door Fan Air Curtain
Product Features
  • Heavy duty industrial-grade air curtain designed for demanding environments
  • Durable powder-coated steel cover with optional stainless steel version
  • Recommended installation height of 4-5 meters
  • High-performance motor optimized for speed and efficiency
  • Ideal for industrial applications with special requirements
Technical Specifications
Model Size (mm) Volt./Freq. Motor Power (W) Air Volume (m³/h) Air Speed (m/s) Noise (dB) N.W (kg)
FM-1609S 900×260×310 220v~ 50Hz 350 2900 16.5 57 26.5
FM-1612S 1200×260×310 220v~ 50Hz 500 3890 16.5 58 31.5
FM-1615S 1500×260×310 220v~ 50Hz 750 4950 16.5 59 39.5
FM-2009S 900×338×366 380v~ 50Hz 720 4700 22 72 29
FM-2012S 1200×338×366 380v~ 50Hz 1050 7350 22 74 35
Product Images

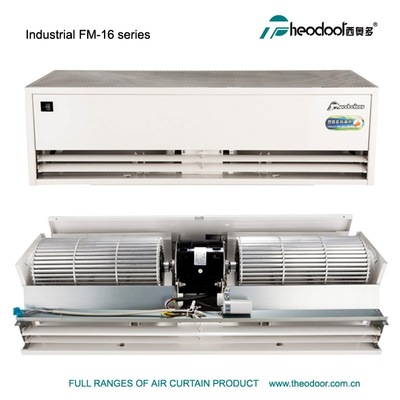

Heavy Duty Industrial Air Curtain with 4000m³/h Airflow and 16m/s or 22m/s Air Velocity for High Performance 0

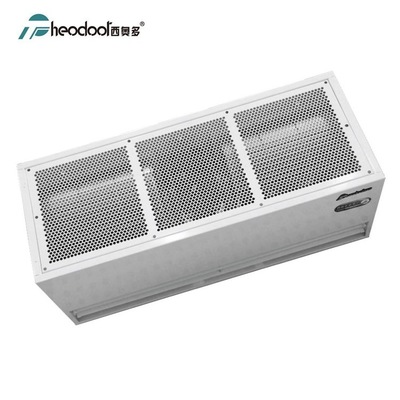

Heavy Duty Industrial Air Curtain with 4000m³/h Airflow and 16m/s or 22m/s Air Velocity for High Performance 1

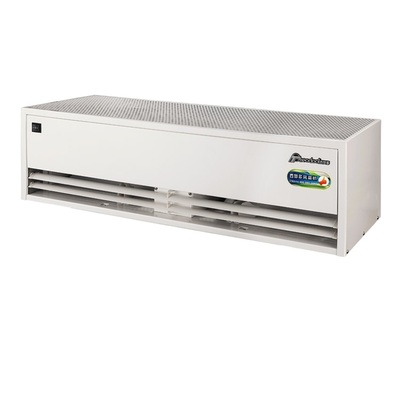

Heavy Duty Industrial Air Curtain with 4000m³/h Airflow and 16m/s or 22m/s Air Velocity for High Performance 2
Company Information
Heavy Duty Industrial Air Curtain with 4000m³/h Airflow and 16m/s or 22m/s Air Velocity for High Performance 3
Heavy Duty Industrial Air Curtain with 4000m³/h Airflow and 16m/s or 22m/s Air Velocity for High Performance 4
Heavy Duty Industrial Air Curtain with 4000m³/h Airflow and 16m/s or 22m/s Air Velocity for High Performance 5
