Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes

50
MOQ
$399
Price
Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes
Features Gallery Product Description Request A Quote
Features
Specifications
Mounting Type: Wall / Window Mount
Motor Type: AC Motor
Weight: 20 Kg
Fan Type: Cross Flow
Motor Standard: IP54, Explosion-proof
Power Supply: 380V/3N/50 HZ
Air Velocity: 16m/s
Cover Material: Steel
Installation Height: 3-5m
Input Power: 320W, 450W, 590W
Air Volume: 2420 M3/h, 3350 M3/h, 4280 M3/h
Noise Level: ≤68 DB, ≤70 DB, ≤72 DB
Explosion-proof Grade: Ex DbⅡC T4Gb
Size Options: 0.9m, 1.2m, 1.5m
Fan Motors Type: AC
Highlight:

380V/3N/50 HZ Power Supply Air Curtain

,

16m/s Air Velocity Door Air Curtain

,

0.9m

,

1.2m

,

1.5m Size Explosion Proof Air Curtain
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor
Payment & Shipping Terms
Product Description
Commercial and Industrial Explosion Proof Air Curtain
High-performance explosion-proof air curtain designed for gate sizes 0.9m, 1.2m, and 1.5m, suitable for hazardous environments in commercial and industrial applications.
Key Features
  • Robust Construction: All-metal powder-coated anti-rust thick body with square frame welded structure for enhanced durability and stability.
  • High-Performance Airflow: Metal cross-flow fan wheel delivers superior air volume, stable output, and effective isolation.
  • Certified Explosion-Proof: Complete unit and motor explosion-proof certified (N0.CJEx23.0770X, N0.CJEx23.0733X).
  • Advanced Safety: Equipped with explosion-proof terminal box and certified pure copper motor, tested for 8000+ hours without failure.
  • Superior Protection: Explosion-proof mark Ex dbⅡC T4Gb (higher grade than standard Ex dbⅡB T4 machines).
  • Versatile Applications: Suitable for Zone 1 & 2 explosive gas environments including biopharmaceutical facilities, chemical plants, laboratories, gas stations, and warehouses.
  • Installation Height: 3-5m optimal mounting range.
Technical Specifications
Model Size (mm) Voltage (V/Hz) Input Power (W) Air Volume (m³/h) Air Speed (m/s) Noise (dB) Net Weight (Kg)
FB-1509A 990×241×260 380V/50Hz 320 2420 16 ≤68 20
FB-1512A 1260×241×260 380V/50Hz 450 3350 16 ≤70 25
FB-1515A 1550×241×260 380V/50Hz 590 4280 16 ≤72 31
Product Images

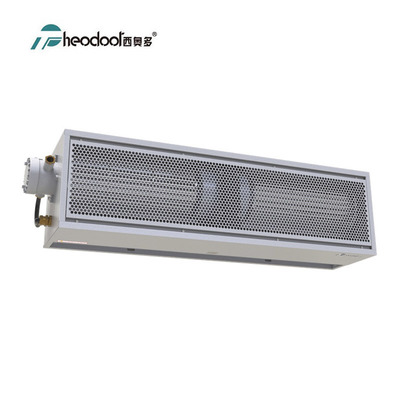

Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes 0

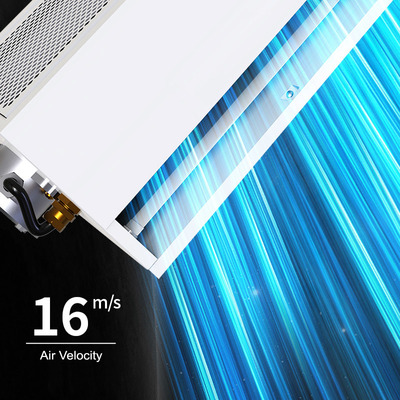

Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes 1

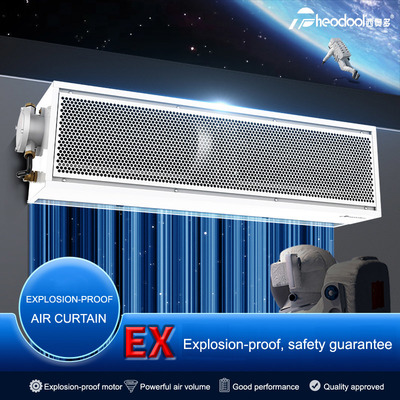

Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes 2
Frequently Asked Questions
What are the main functions of an Air Curtain?
  • Dust-proof and insect prevention
  • Odor isolation
  • Energy saving
  • Comfortable heating
How to select the suitable air curtain?
Consider these factors when selecting an air curtain:
  • Application requirements
  • Door height and width
  • External wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Unit size and design
  • Noise level specifications
  • Power consumption
