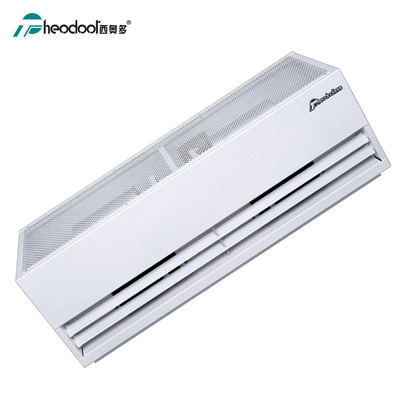

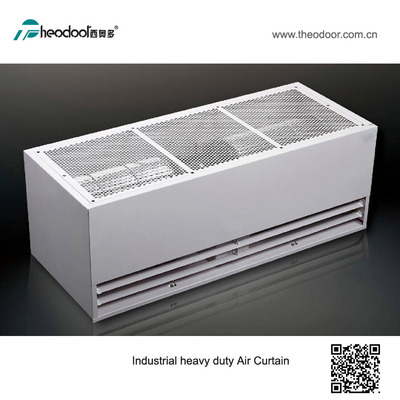

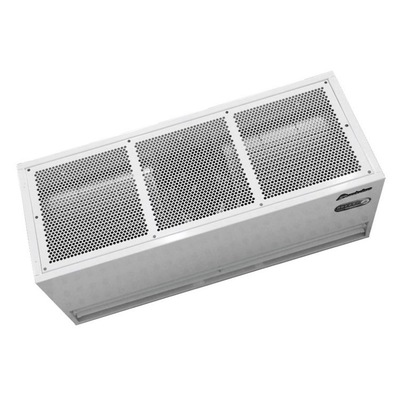

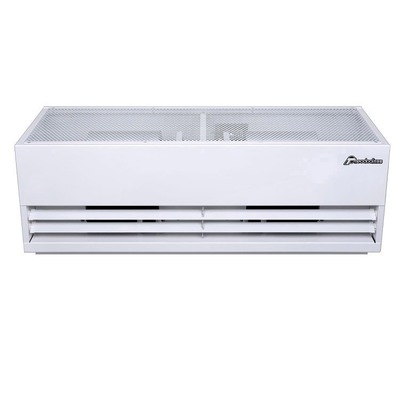

Industrial Air Curtain Blower with 380V High Airflow 4500m³/h and 22m/s Velocity for Warehouse Applications

30
MOQ
$399
Price
Industrial Air Curtain Blower with 380V High Airflow 4500m³/h and 22m/s Velocity for Warehouse Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Voltage: 380/400 VAC
Mounting Type: Wall / Window Mount
Airflow: 4500m³/h
Weight: 30 KG
Air Velocity: 22m/s
Fan Type: Cross Flow Industrial Air Curtain
Material: Metal Or Stainless Steel
Size: 0.9m, 1.2m
Voltage: 380V
Installation Height: 5-6m
Wheel Diameter: 200mm
Input Power: 720W, 1050W
Air Volume: 4700m³/h, 7350m³/h
Noise Level: 72db, 74db
Net Weight: 29Kg, 35Kg
Highlight:

380V Industrial Air Curtain

,

4500m³/h Blower Air Curtain

,

22m/s Velocity Air Curtain
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor
Payment & Shipping Terms
Product Description
Industrial Door Metal Blower Air Curtain With SASO Certificate
Durable Construction

Galvanized steel with powder coated finish ensures sturdy, durable performance that resists deformation. Features an optimized high-velocity motor capable of meeting demanding installation requirements and special environmental conditions.

Powerful Airflow Performance

Incorporates a quiet aluminum alloy wind wheel with scientific airflow design to deliver strong, powerful air volume with smooth operation.

Key Features
  • Heavy-duty industrial-grade air curtain

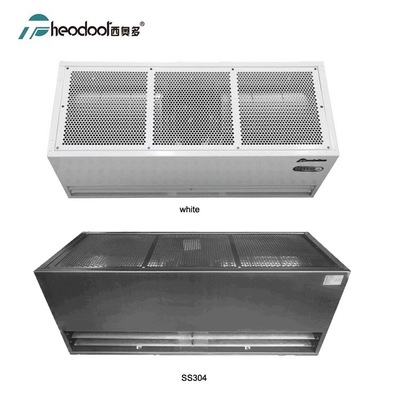

  • Powder-coated steel cover with optional stainless steel upgrade
  • Designed for installation heights of 5-6 meters
  • High-speed motor optimized for demanding applications
Technical Specifications
Model Dia. of wheel (mm) Dimension (mm) Voltage V/Hz Input power (W) Air Volume (m³/h) Air Speed (m/s) Noise (db) Net Weight (Kg)
FM-2009S 200 900x366x338 380V/50Hz 720 4700 22 72 29
FM-2012S 200 1200x366x338 380V/50Hz 1050 7350 22 74 35
Applications

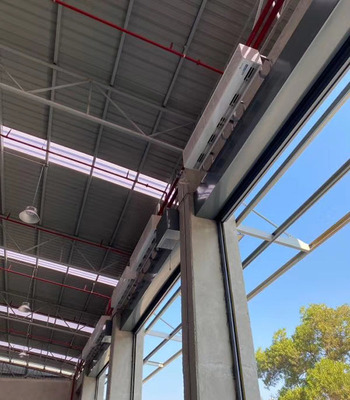

Ideal for storage rooms, workshops, factories, stations, and other industrial environments requiring powerful isolation with energy-efficient operation.

Powerful Isolation & Energy Efficiency

Provides effective thermal barrier while reducing energy costs through efficient operation.
