Home /Products/Theodoor Air Curtain/Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available

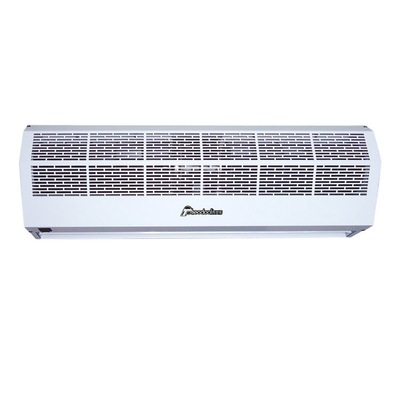

Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available

10
MOQ
$299
Price
Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Voltage: 115 VAC
Mounting Type: Wall / Window Mount
Airflow: 2000m³/h
Weight: 15 KG
Fan Type: Cross Flow Type
Fan Speed: 2 Speeds
Voltage: 110V~120V/60Hz
Cover Material: Steel With Powder Coated Or SS304
Air Velocity: 10-13m/s
Input Power: 380W (Hi), 300W (Low)
Air Volume: 2000m³/h (Hi), 1600m³/h (Low)
Size: 900X220X260mm (FM-1509SA1)
Motor Type: Overheating Protector
Control Type: Remote Control Or Touch Switch
Continuous Operation: 5000 Hours
Highlight:

2000m³/h Airflow Theodoor Air Curtain

,

115 VAC Operating Voltage Door Fan

,

36 40 48 60 Inches Sizes Available Air Curtain
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor
Payment & Shipping Terms
Product Description
Titan Air Curtain For Door With UL Listed
Key Features
  • Compact design with metal cover for easy installation and simple maintenance
  • Optimized fan wheel provides stable, even airflow with large volume and low noise performance
  • Reliable motor design includes overheating protector and 5000+ hours of continuous operation
  • Remote control or touch switch for adjustable high/low air velocity (10-13m/s)
  • Ideal for cafeterias, bakeries, restaurants, retail shops, department stores, and sports centers
Technical Specifications
Model Voltage (V/HZ) Input Power (W) Air Volume (m³/h) Air Speed (m/s) Size (mm)
FM-1509SA1 120/60 380 (Hi)
300 (Low)		 2000 (Hi)
1600 (Low)		 13 (Hi)
10 (Low)		 900×220×260
FM-1510SA1 120/60 400 (Hi)
320 (Low)		 2300 (Hi)
1800 (Low)		 13 (Hi)
10 (Low)		 1000×220×260
FM-1512SA1 120/60 530 (Hi)
450 (Low)		 2800 (Hi)
2200 (Low)		 13 (Hi)
10 (Low)		 1200×220×260
FM-1515SA1 120/60 690 (Hi)
610 (Low)		 3600 (Hi)
2800 (Low)		 13 (Hi)
10 (Low)		 1500×220×260
Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 0 Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 1 Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 2
What is an Air Curtain?
Theodoor air curtains are installed above entryways in stores, restaurants, hotels, and other commercial spaces. They effectively isolate indoor and outdoor environments, maintaining temperature and humidity levels while preventing dust, pests, and harmful fumes from entering. Particularly valuable in air-conditioned spaces, they help conserve energy by reducing the workload on refrigeration systems while maintaining a comfortable indoor climate.
Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 3
Packaging & Shipping
Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 4
Our Services
  • OEM and ODM solutions available
  • Custom label and box design services
  • Comprehensive shipping arrangements
  • After-sales spare parts support
With over 22 years of manufacturing and export experience, we offer more than 100 air curtain models suitable for various environments. Our professional R&D team utilizes advanced machinery and technology to ensure product performance and reliability. We maintain strict quality control with 100% product testing, delivering long-life, high-reliability air curtains that provide excellent cost savings through energy efficiency and durability.
Company Information
Founded in 2002, Theodoor operates from a 30,000 square meter facility in Guangzhou's Sino-Singapore Knowledge City. Our modern production facilities feature advanced equipment and testing instruments to ensure product precision and reliability. We hold numerous patents and maintain certifications including ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA.
Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 5 Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 6 Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 7
