Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors

20
MOQ
$299
Price
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors
Features Gallery Product Description Request A Quote
Features
Specifications
Mounting Type: Ceiling Mount
Dimension Range: 0.9-2m
Weight: 18 Kg
Fan Motors Type: AC
Air Curtain Type: Cross Flow Type
Material: Steel With Powder Coated
Heater Type: PTC Heater
Fan Speed: 2-speed
Control Type: Button+Remote
Voltage: 220v ~50Hz / 380v ~50Hz
Motor Power: <160W / <200W / <230W / <300W
Heater Power: 6 / 4 /2 KW / 8 / 5 /3 KW / 10 / 7 /3 KW / 12 / 8 /4 KW
Air Speed: 7.5-8.5 M/S
Air Volume: 1000 M3/h / 1500 M3/h / 1900 M3/h / 2400 M3/h
Continuous Operation: 5000 Hours
Highlight:

2-Speed Fan Air Curtain

,

3 Minutes Delay Industrial Air Curtain

,

5000 Hours Continuous Operation Commercial Door Curtain
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Theodoor
Certification: ce
Payment & Shipping Terms
Product Description
Air Barrier and Cortina De Ar at Size 3ft to 5ft for Commercial Door Curtains
Product Description

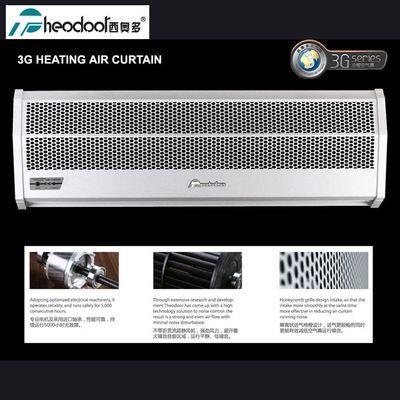

3G series hot air curtain for opening door with PTC electric heater for enhanced safety and performance.

  • Metal casing with painting, high fire resistance, compact construction and easy installation

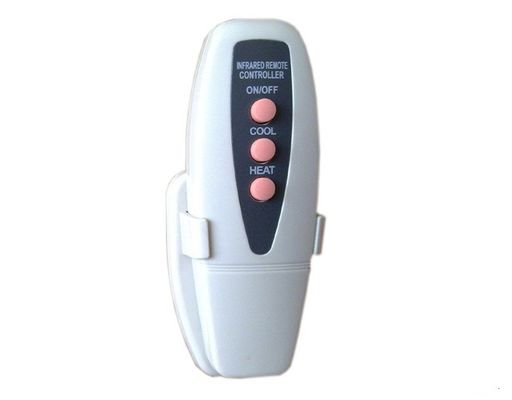

  • High and low speed with wireless remote control for versatile environment adaptation
  • 3-minute warm air delay with overheating protection for double safety
  • Creates temperature-differentiating air barrier to prevent cold draughts
  • Reliable motors capable of 5,000 hours continuous operation
  • Available in three power levels for flexible usage
Technical Specifications
MODEL Size (mm) Voltage (V ~ Hz) Motor Power (W) Heater Power (KW) Air Speed (M/S) Air Volume (m3/h)
RM-1209S-D/Y3G 900x195x265 220v ~50Hz <160 6 / 4 /2 7.5-8.5 1000
RM-1212S-D/Y3G 1200x195x265 220v ~50Hz <200 8 / 5 /3 7.5-8.5 1500
RM-1215S-D/Y3G 1500x195x265 220v ~50Hz <230 10 / 7 /3 7.5-8.5 1900
RM-1209S-3D/Y3G 900x195x265 380v ~50Hz <160 6 / 4 /2 7.5-8.5 1000
RM-1212S-3D/Y3G 1200x195x265 380v ~50Hz <200 8 / 5 /3 7.5-8.5 1500
RM-1215S-3D/Y3G 1500x195x265 380v ~50Hz <230 10 / 7 /3 7.5-8.5 1900
RM-1218S-3D/Y3G 1800x195x265 380v ~50Hz <300 12 / 8 /4 7.5-8.5 2400
Product Images
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 0
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 1
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 2
What is an Air Curtain?

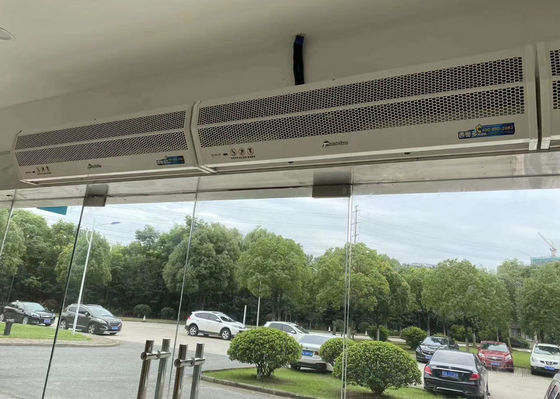

Theodoor air curtains are installed above entryways of stores, restaurants, hotels and other commercial spaces. They effectively isolate indoor and outdoor environments, maintaining temperature and humidity levels while preventing dust, pests, and harmful fumes from entering.

Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 3
Packaging & Shipping
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 4
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 5
Company Information

Professional air curtain manufacturer with extensive industry experience and certifications.

Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 6
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 7
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 8
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 9
