Features Gallery Product Description Request A Quote

Features

Specifications

Operating Voltage: 380/400 VAC

Mounting Type: Wall / Window Mount

Dimension: 0.9m-2m

Airflow: 2000m³/h

Weight: 20 KG

Fan Type: Cross Flow Type

Voltage: 380V

Frequency: 50hz

Available Size: 0.9m, 1.2m, 1.5m, 1.8m, 2m

PTC Heater Power: 3-14kw

Rising Temp: 35-45℃

Control: Remote Control

Motor Input Power: <160W - <350W

Air Speed: 6-7.5 M/S

Air Volume: 1000-2600 M³/h

Highlight:

380V Voltage Air Curtain

2000m³/h Airflow Industrial Air Curtain

1 Year Warranty Air Barrier

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Theodoor

Payment & Shipping Terms

Gallery

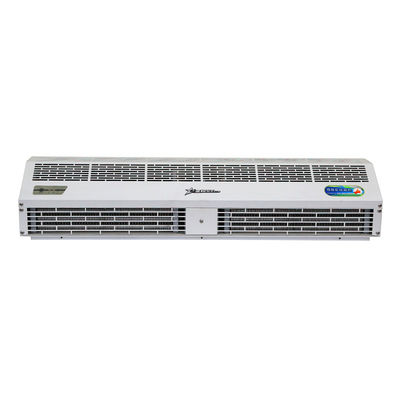

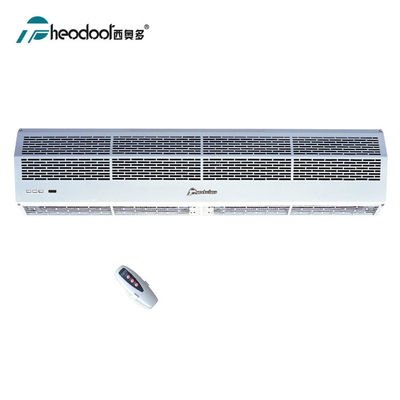

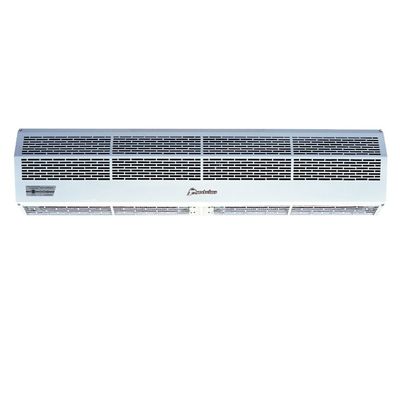

380V Voltage Industrial Air Curtain with 2000m³/h Airflow and 1 Year Warranty for Cooling and Heating

Product Description

Cooling and Heating Air Curtain Over Door AC Fan With ISO CE Certificates

Product Features

Super thin and slim design: Arc-shaped metal body that's environmentally friendly and deformation-resistant

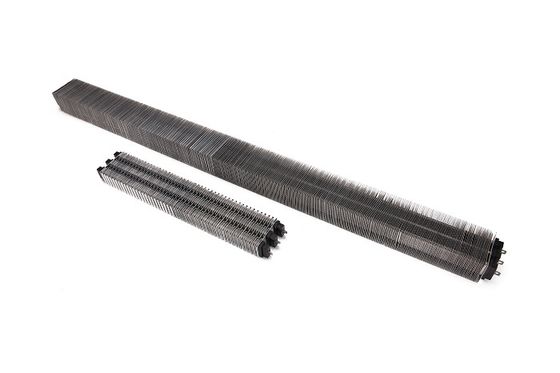

High performance: Uncharged PTC heater with efficient heat output and conversion, low consumption with high output
Durable operation: Optimized motor runs for 5000+ hours continuously without failure
Safety features: Thermal protector, varistor, and fuse protection with automatic safety shutdown

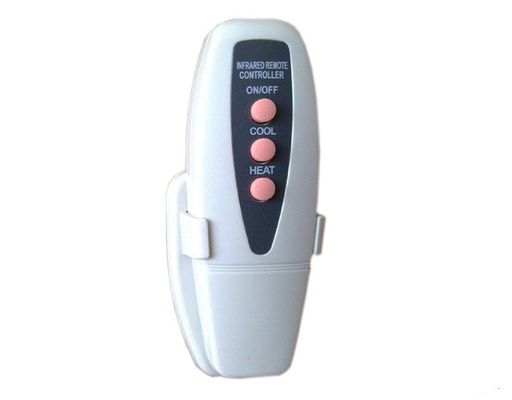

Smart control: Remote control with automatic hot/cool wind switching capability

Technical Specifications

Model	Size (mm)	Voltage (V ~ Hz)	Motor Input Power (W)	Heater's Power (KW)	Temp. (K)	Air Speed (M/S)	Air Volume (m³/h)	Net Weight (Kg)
RM-1209S-D/Y	900x180x215	220v ~50Hz	<160	3	25-35	6-7.5	1000	14.5
RM-1212S-D/Y	1200x180x215	220v ~50Hz	<200	4	25-35	6-7.5	1400	17.5
RM-1215S-D/Y	1500x180x215	220v ~50Hz	<230	10	35-45	6-7.5	1900	21
RM-1209S-3D/Y	900x180x215	(3 phase) 380v ~50Hz	<160	6	35-45	6-7.5	1000	14.5
RM-1218S-3D/Y	1800x180x215	(3 phase) 380v ~50Hz	<330	12	35-45	6-7.5	2100	23

Packaging & Shipping

How Air Curtains Work

Air curtains create an "invisible air door" using high-speed motors with cross flow or centrifugal blowers. They effectively isolate indoor and outdoor environments while maintaining temperature and humidity. Widely used in electronics, pharmaceuticals, food processing, and chemical industries for environmental control.

Manufacturer Information

Theodoor Industrial Park covers 30,000 square meters with advanced equipment and strict quality management systems. We implement ERP and 6S management with focus on design aesthetics, performance, and material innovation.

With over 80 national patents and international certifications including ISO9001, CE, and UL, Theodoor leads in quality and performance upgrades in the industry.
